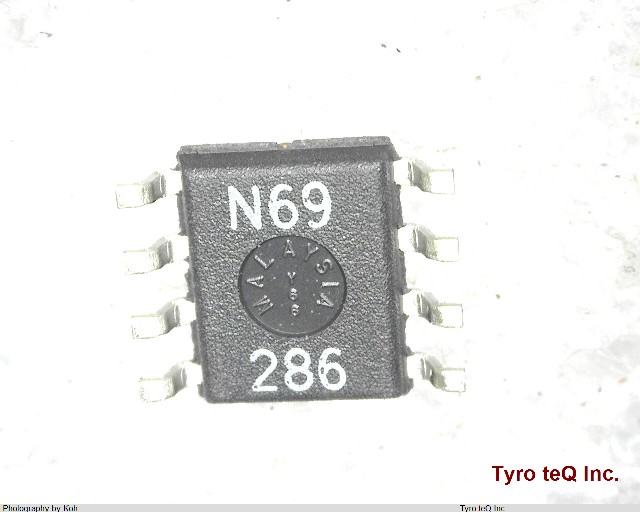

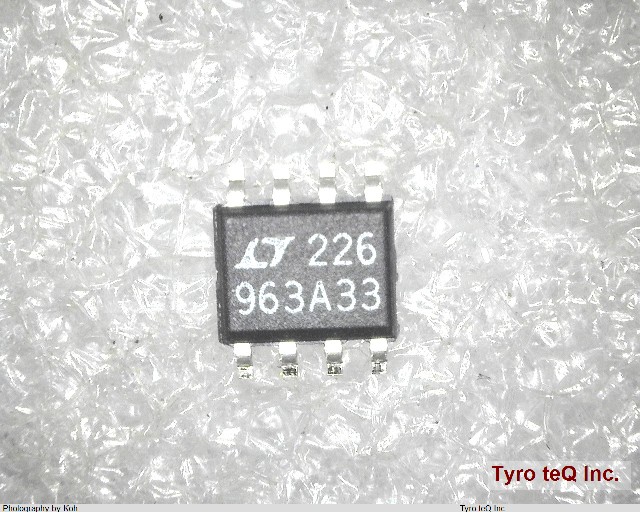

LT1963AES833 Lineartech

LT1963AES833 - LINEAR TECH の商品詳細ページです。

1
No Image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

LT1963AES833 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LT1963AES833
メーカーLINEAR TECH
Adjustability FIXED
DLA Qualification Not Qualified
Dropout Voltage1-Max 0.55 V
Dropout Voltage1-Max (V) 0.55
Dropout Voltage1-Nom 0.34 V
Dropout Voltage1-Nom (V) 0.34
Input Voltage Absolute-Max 20 V
Input Voltage Absolute-Max (V) 20
Input Voltage-Max 20 V
Input Voltage-Max (V) 20
Input Voltage-Min 3.8 V
Input Voltage-Min (V) 3.8
J-STD-609 Code e3
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Length 4.9025 mm
Length (mm) 4.9025
Line Regulation-Max 0.01 %
Line Regulation-Max (V) 0.01
Load Regulation-Max 0.035 %
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 8
Operating Temperature, TJ-Max 125 Cel
Operating Temperature, TJ-Min -40 Cel
Output Current1-Max 1.5 A
Output Voltage1-Max 3.4 V
Output Voltage1-Min 3.2 V
Output Voltage1-Nom 3.3 V
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Packing Method TR
Peak Reflow Temperature (Cel) 235
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 1.752 mm
Sub Category Other Regulators
Surface Mount YES
Technology BIPOLAR
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 20
Voltage Tolerance-Max 3 %
Width 3.9 mm
会社名称Linear Technology Corporate
所在地1630 McCarthy Blvd. Milpitas, CA 95035-7417 USA
URLhttp://www.linear.com/

LT1963AES833のレビュー

LT1963AES833 のご注文について
