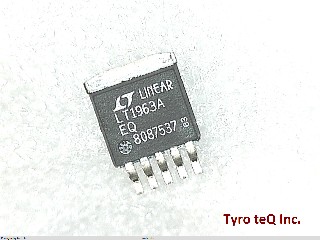

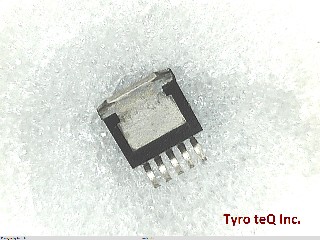

LT1963AEQ#PBF

Name: LT1963AEQ#PBF
Brand: LINEAR TECH
SKU: 220209876-0000-0000-0000

LT1963AEQ#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1963AEQ#PBF の詳細情報

型番	LT1963AEQ#PBF
メーカー	LINEAR TECH
Adjustability	ADJUSTABLE
Dropout Voltage1-Max	0.55 V
Dropout Voltage1-Nom	0.34 V
Input Voltage Absolute-Max	20 V
Input-Output Voltage Differential-Max	18.79 V
Input-Output Voltage Differential-Min	1 V
JESD-30 Code	R-PSSO-G5
JESD-609 Code	e3
Length	10.2235 mm
Line Regulation-Max	0.005 %
Line Regulation-Max (%/V)	0.023
Load Regulation-Max	0.015 %
Load Regulation-Max(%)	1.24 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	5
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	1.5 A
Output Voltage1-Max	20 V
Output Voltage1-Min	1.21 V
Package Body Material	PLASTIC/EPOXY
Package Code	TO-263
Package Equivalence Code	SMSIP5H,.6,67TB
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	4.877 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Form	GULL WING
Terminal Pitch	1.702 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	30
Voltage Tolerance-Max	2.98 %
Width	8.89 mm
