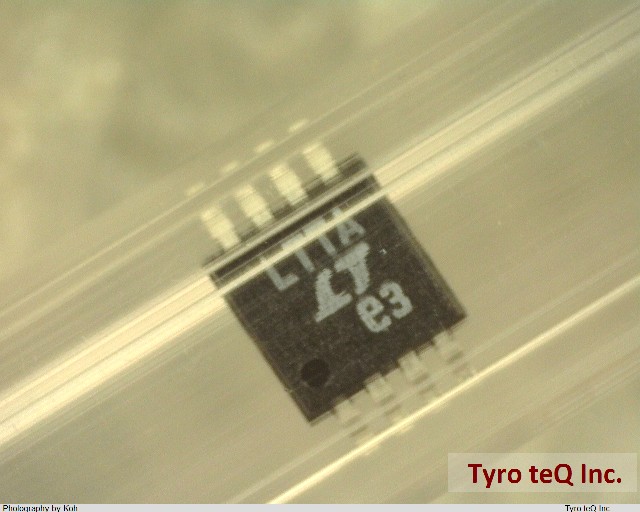

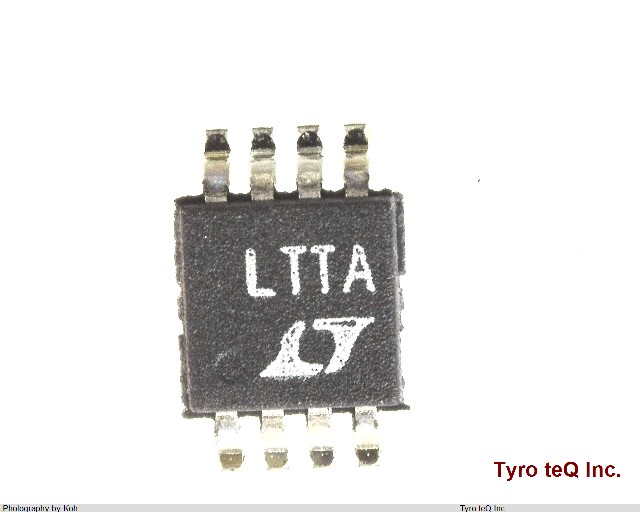

LT1962EMS8-1.8#PBF

Name: LT1962EMS8-1.8#PBF
Brand: LINEAR TECH
SKU: 220210195-0000-0000-0000

LT1962EMS8-1.8#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1962EMS8-1.8#PBF の詳細情報

型番	LT1962EMS8-1.8#PBF
メーカー	LINEAR TECH
Adjustability	FIXED
DLA Qualification	Not Qualified
Dropout Voltage1-Max	0.43 V
Dropout Voltage1-Max (V)	0.43
Dropout Voltage1-Nom	0.27 V
Input Voltage Absolute-Max	20 V
Input Voltage-Max	20 V
Input Voltage-Max (V)	20
Input Voltage-Min	2.3 V
Input Voltage-Min (V)	2.3
J-STD-609 Code	e3
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e3
Length	3 mm
Length (mm)	3
Line Regulation-Max	0.005 %
Load Regulation-Max	0.018 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature TJ-Max (Cel)	125
Operating Temperature TJ-Min (Cel)	-40
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	0.3 A
Output Current1-Max (A)	0.3
Output Voltage1-Max	1.845 V
Output Voltage1-Max (V)	1.845
Output Voltage1-Min	1.755 V
Output Voltage1-Min (V)	1.755
Output Voltage1-Nom	1.8 V
Output Voltage1-Nom (V)	1.8
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.19
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.1 mm
Seated Height-Max (mm)	1.1
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
