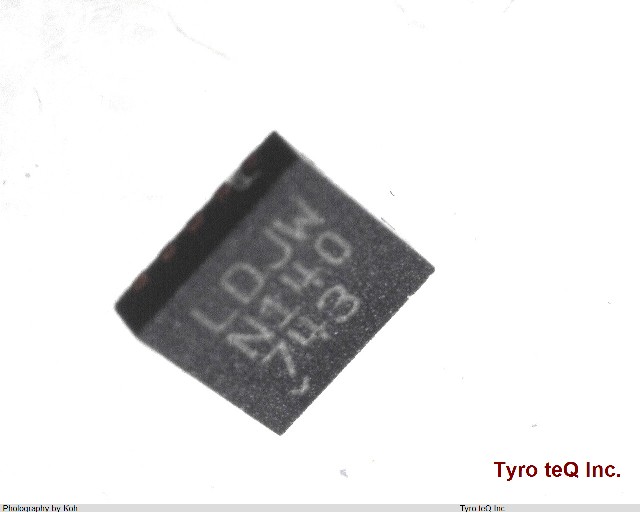

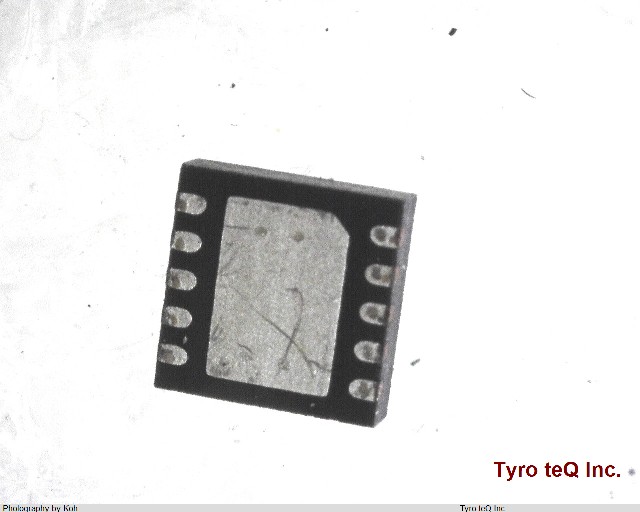

LT1913EDD#PBF

Name: LT1913EDD#PBF
Brand: LINEAR TECH
SKU: 400057080-0000-0000-0000

LT1913EDD#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1913EDD#PBF の詳細情報

型番	LT1913EDD#PBF
メーカー	LINEAR TECH
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	25 V
Input Voltage-Max (V)	25
Input Voltage-Min	3.6 V
Input Voltage-Min (V)	3.6
Input Voltage-Nom	10 V
Input Voltage-Nom (V)	10
J-STD-609 Code	e3
JESD-30 Code	S-PDSO-N10
JESD-609 Code	e3
Length	3 mm
Length (mm)	3
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	10
Operating Temperature-Max	125 Cel
Operating Temperature-Max (Cel)	125
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Current-Max	6 A
Output Current-Max (A)	6
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Equivalence Code	SOLCC10,.12,20
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK-BOOST
Switching Frequency-Max	2700 kHz
Switching Frequency-Max (kHz)	2700
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
Width (mm)	3
