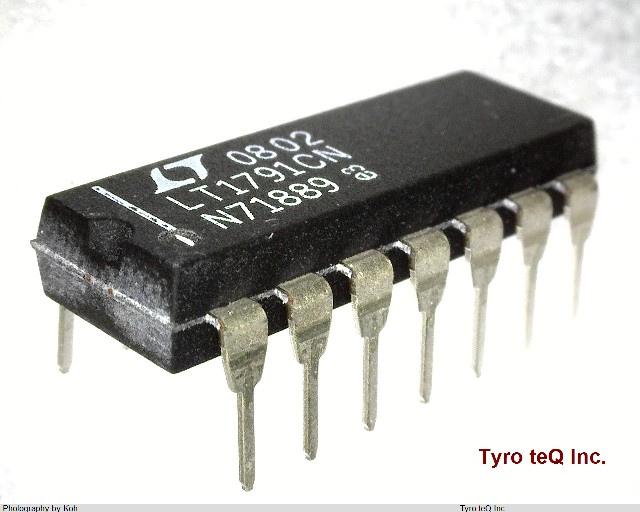

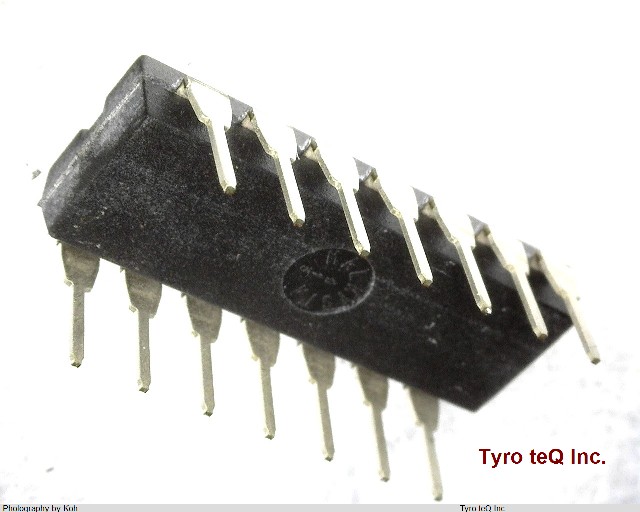

LT1791CN#PBF
1
-
- 個
２営業日以内に回答いたします
LT1791CN#PBF の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | LT1791CN#PBF |
|---|---|
| メーカー | LINEAR TECH |
| DLA Qualification | Not Qualified |
| Differential Output | YES |
| Driver Number of Bits | 1 |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER |
| Interface IC Type | LINE TRANSCEIVER |
| Interface Standard | EIA-422; EIA-485 |
| J-STD-609 Code | e3 |
| JESD-30 Code | R-PDIP-T14 |
| Length (mm) | 19.55 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 14 |
| Operating Temperature-Max (Cel) | 70 |
| Operating Temperature-Min (Cel) | 0 |
| Out Swing-Min (V) | 1.2 |
| Output Characteristics | DIFFERENTIAL |
| Output Low Current-Max (mA) | 1.6 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies (V) | 5 |
| Receive Delay-Max (ns) | 900 |
| Receiver Number of Bits | 1 |
| Seated Height-Max (mm) | 3.429 |
| Sub Category | Line Driver or Receivers |
| Supply Current-Max (mA) | 9 |
| Supply Voltage-Max (V) | 5.25 |
| Supply Voltage-Min (V) | 4.75 |
| Supply Voltage-Nom (V) | 5 |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch (mm) | 2.54 |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Transmit Delay-Max (ns) | 2000 |
| Width (mm) | 7.62 |
| 会社名称 | Linear Technology Corporate |
|---|---|
| 所在地 | 1630 McCarthy Blvd. Milpitas, CA 95035-7417 USA |
| URL | http://www.linear.com/ |
