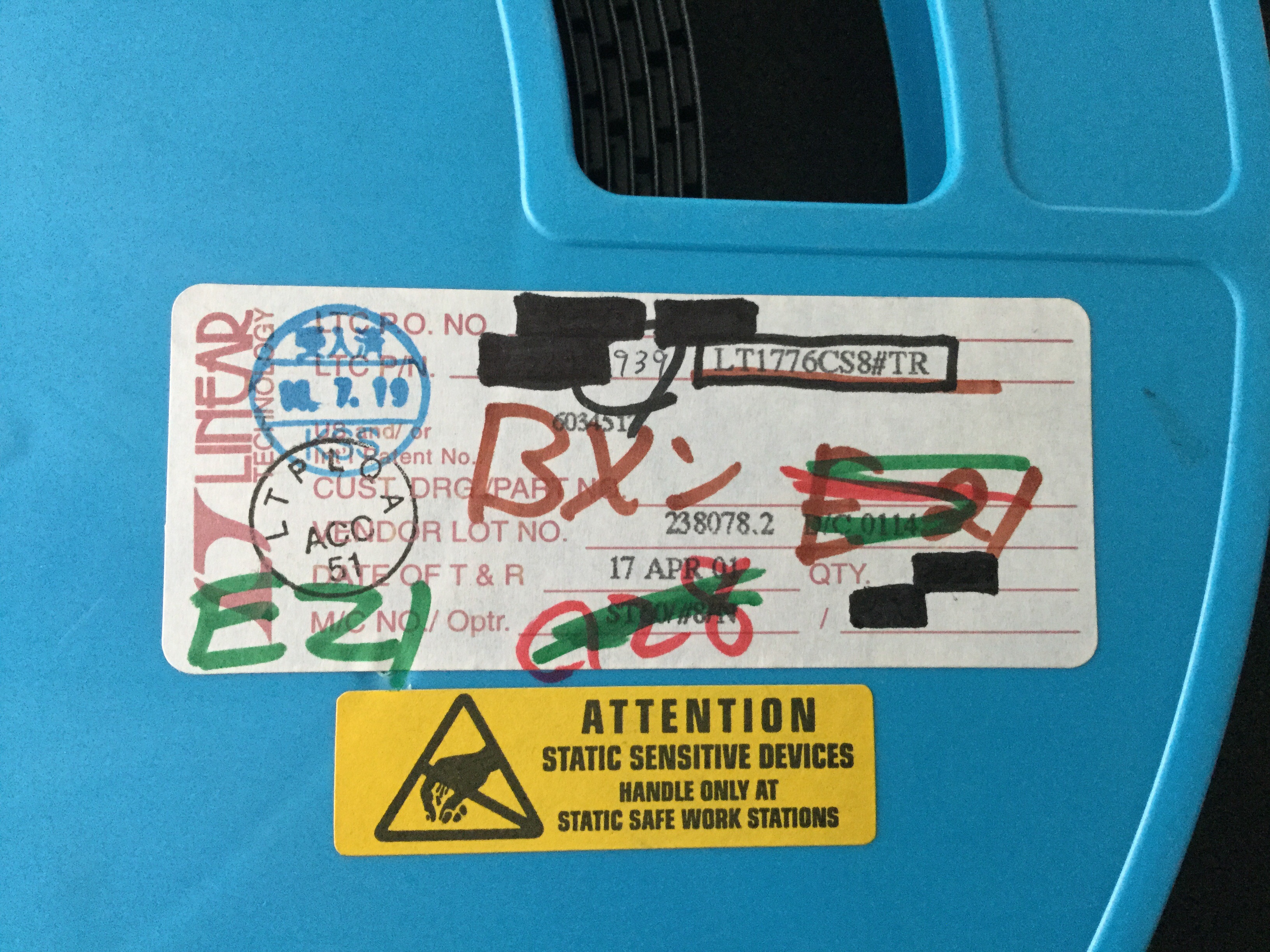

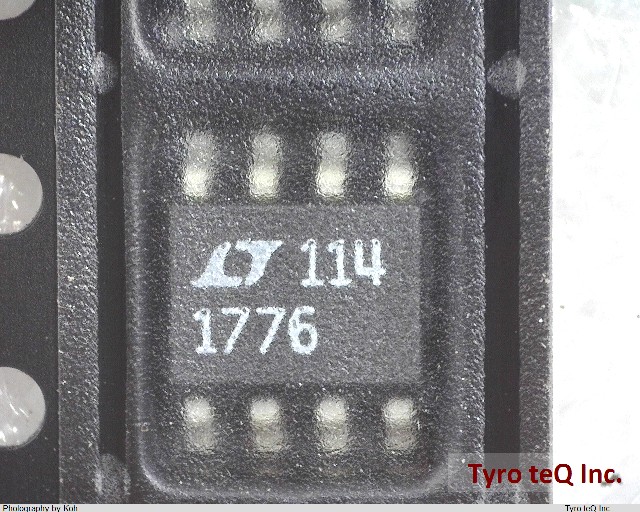

LT1776CS8#TR

Name: LT1776CS8#TR
Brand: LINEAR TECH
SKU: 220121382-0000-0000-0000

LT1776CS8#TR - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1776CS8#TR の詳細情報

型番	LT1776CS8#TR
メーカー	LINEAR TECH
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	60 V
Input Voltage-Max (V)	60
Input Voltage-Min	7.4 V
Input Voltage-Min (V)	7.4
Input Voltage-Nom	40 V
Input Voltage-Nom (V)	40
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Length (mm)	4.9
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Output Current-Max	1 A
Output Current-Max (A)	1
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Seated Height-Max (mm)	1.75
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	230 kHz
Switching Frequency-Max (kHz)	230
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.9 mm
Width (mm)	3.9
