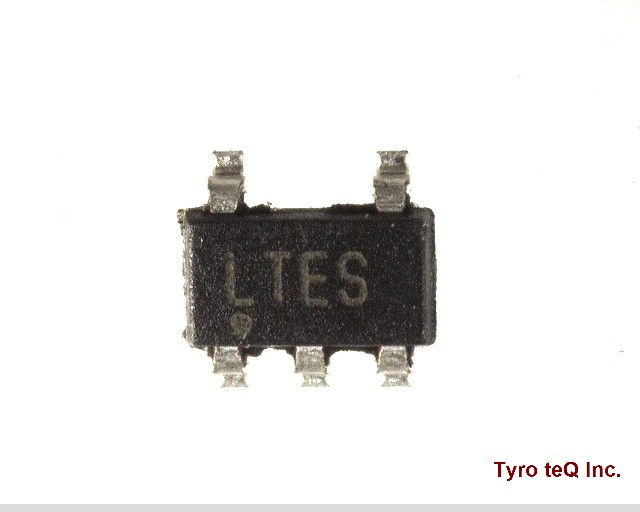

LT1611CS5

Name: LT1611CS5
Brand: LINEAR TECH
SKU: 400061286-0000-0000-0000

LT1611CS5 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1611CS5 の詳細情報

型番	LT1611CS5
メーカー	LINEAR TECH
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	10 V
Input Voltage-Max (V)	10
Input Voltage-Min	1.1 V
Input Voltage-Min (V)	1.1
Input Voltage-Nom	1.5 V
Input Voltage-Nom (V)	1.5
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e0
Length	2.9 mm
Length (mm)	2.9
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Current-Max	0.8 A
Output Current-Max (A)	0.8
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSOP5/6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	235
Qualification Status	Not Qualified
Seated Height-Max	1.45 mm
Seated Height-Max (mm)	1.45
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK-BOOST
Switching Frequency-Max	1800 kHz
Switching Frequency-Max (kHz)	1800
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Pitch (mm)	0.95
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	1.625 mm
Width (mm)	1.625
