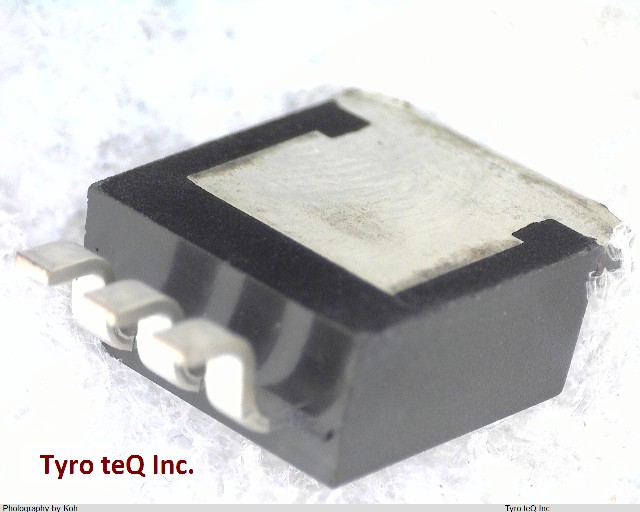

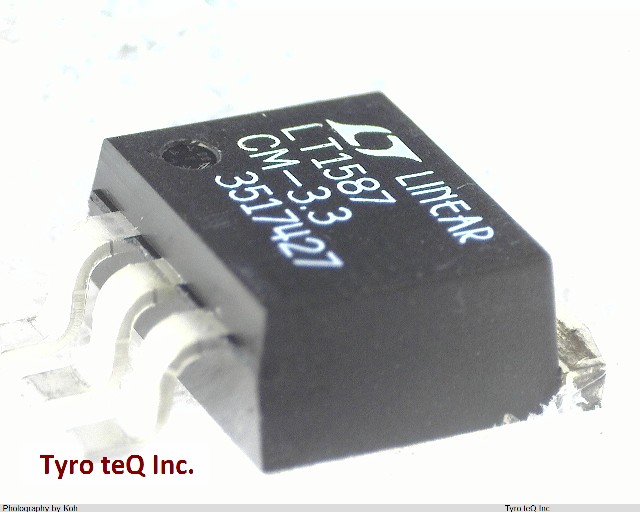

LT1587CM-3.3 Lineartech

LT1587CM-3.3 - LINEAR TECH の商品詳細ページです。

1
LT1587CM-3.3
  • LT1587CM-3.3
  • LT1587CM-3.3
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

LT1587CM-3.3 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LT1587CM-3.3
メーカーLINEAR TECH
Adjustability FIXED
DLA Qualification Not Qualified
Dropout Voltage1-Max 1.3 V
Dropout Voltage1-Max (V) 1.3
Dropout Voltage1-Nom 1.15 V
Input Voltage Absolute-Max 7 V
Input Voltage-Max 7 V
Input Voltage-Max (V) 7
Input Voltage-Min 4.75 V
Input Voltage-Min (V) 4.75
J-STD-609 Code e3
JESD-30 Code R-PSSO-G2
JESD-609 Code e0
Length 10.2235 mm
Length (mm) 10.2235
Line Regulation-Max 0.0066 %
Load Regulation-Max 0.0165 %
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 2
Operating Temperature TJ-Max (Cel) 125
Operating Temperature TJ-Min (Cel) 0
Operating Temperature, TJ-Max 125 Cel
Operating Temperature, TJ-Min 0 Cel
Output Current1-Max 3 A
Output Current1-Max (A) 3
Output Voltage1-Max 3.365 V
Output Voltage1-Max (V) 3.365
Output Voltage1-Min 3.235 V
Output Voltage1-Min (V) 3.235
Output Voltage1-Nom 3.3 V
Output Voltage1-Nom (V) 3.3
Package Body Material PLASTIC/EPOXY
Package Code TO-263
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Packing Method TR
Peak Reflow Temperature (Cel) 235
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 4.572 mm
Surface Mount YES
Terminal Finish MATTE TIN OVER NICKEL
Terminal Form GULL WING
Terminal Pitch 2.54 mm
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 20
Voltage Tolerance-Max 2 %
Width 8.89 mm
会社名称Linear Technology Corporate
所在地1630 McCarthy Blvd. Milpitas, CA 95035-7417 USA
URLhttp://www.linear.com/
