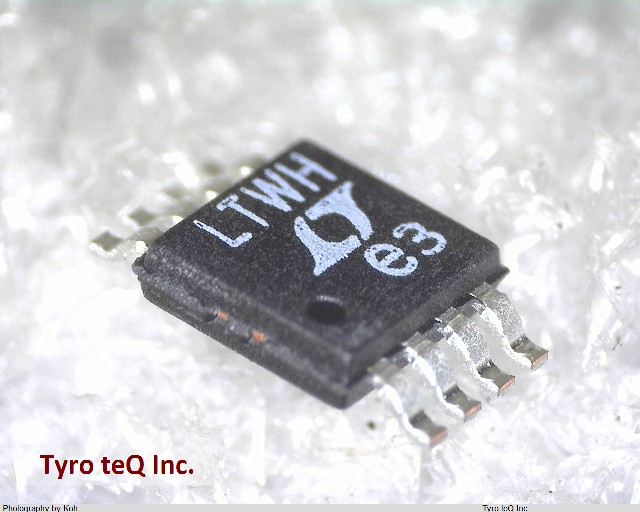

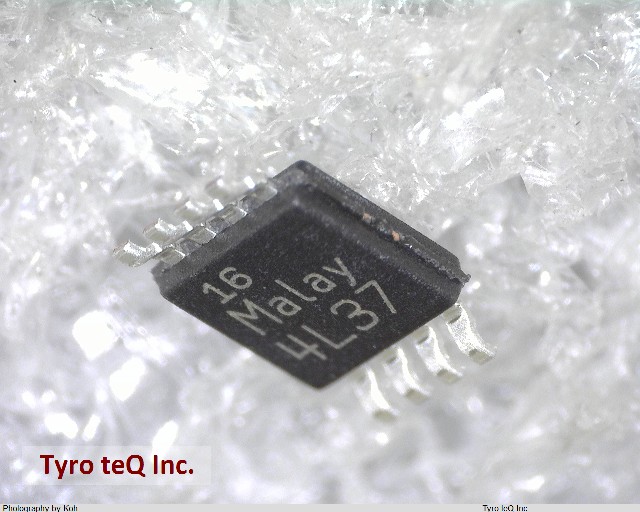

LT1567CMS8#PBF

Name: LT1567CMS8#PBF
Brand: LINEAR TECH
SKU: 220222058-0000-0000-0000

LT1567CMS8#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

この商品のお問い合わせ

LT1567CMS8#PBF の詳細情報

仕様・詳細
メーカー情報

型番	LT1567CMS8#PBF
メーカー	LINEAR TECH
Active Filter Type	CONTINUOUS TIME FILTER
Additional Feature	2ND OR 3RD ORDER CHEBYSHEV OR BUTTERWORTH LOWPASS OR 2ND ORDER BANDPASS FILTER CAN BE DESIGNED
Center or Cutoff Freq Rng-Max	5000 kHz
Center or Cutoff Freq Rng-Max (kHz)	5000
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e3
Length	3 mm
Length (mm)	3
Moisture Sensitivity Level	1
Neg Supply Voltage-Max (Vsup)	-6 V
Neg Supply Voltage-Min (Vsup)	-1.35 V
Neg Supply Voltage-Nom (Vsup)	-2.5 V
Negative Supply Voltage-Max (V)	-6
Negative Supply Voltage-Min (V)	-1.35
Negative Supply Voltage-Nom (V)	-2.5
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Order	2ND
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.19
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Poles and Zeros	3 AND 0
Power Supplies	2.7/12 V
Qualification Status	Not Qualified
Response	BANDPASS/LOWPASS
Seated Height-Max	1.1 mm
Seated Height-Max (mm)	1.1
Sub Category	Active Filters
Supply Current-Max (Isup)	19 mA
Supply Voltage-Max (V)	6
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (V)	1.35
Supply Voltage-Min (Vsup)	1.35 V
Supply Voltage-Nom (V)	2.5
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transfer Characteristics	BUTTERWORTH/CHEBYSHEV
