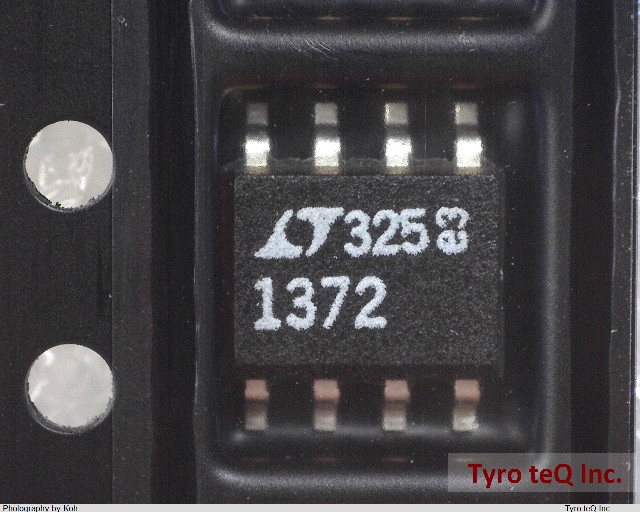

LT1372CS8#PBF

Name: LT1372CS8#PBF
Brand: LINEAR TECH
SKU: 220194170-0000-0000-0000

LT1372CS8#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1372CS8#PBF の詳細情報

型番	LT1372CS8#PBF
メーカー	LINEAR TECH
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	25 V
Input Voltage-Max (V)	25
Input Voltage-Min	2.7 V
Input Voltage-Min (V)	2.7
Input Voltage-Nom	5 V
Input Voltage-Nom (V)	5
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Length (mm)	4.9
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Current-Max	2.7 A
Output Current-Max (A)	2.7
Output Voltage-Nom	1.245 V
Output Voltage-Nom (V)	1.245
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Seated Height-Max (mm)	1.75
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	5.5 mA
Supply Current-Max (mA)	5.5
Surface Mount	YES
Switcher Configuration	BOOST
Switching Frequency-Max	580 kHz
Switching Frequency-Max (kHz)	580
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
