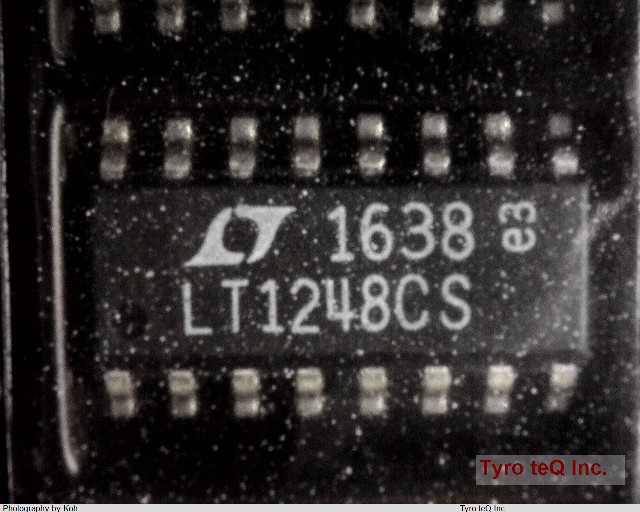

LT1248CS データシート

Name: LT1248CS
Brand: LINEAR TECH
SKU: 220025938-0000-0000-0000

LT1248CS - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1248CS の詳細情報

型番	LT1248CS
メーカー	LINEAR TECH
データシート
Analog IC - Other Type	POWER FACTOR CONTROLLER
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	25 V
Input Voltage-Max (V)	25
Input Voltage-Min	11.5 V
Input Voltage-Min (V)	11.5
Input Voltage-Nom	18 V
Input Voltage-Nom (V)	18
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	9.9 mm
Length (mm)	9.9
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Current-Max	1.5 A
Output Current-Max (A)	1.5
Output Voltage-Nom	7.5 V
Output Voltage-Nom (V)	7.5
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Seated Height-Max (mm)	1.75
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	12 mA
Supply Current-Max (mA)	12
Surface Mount	YES
Switcher Configuration	BOOST
Switching Frequency-Max	300 kHz
Switching Frequency-Max (kHz)	300
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.899 mm
Width (mm)	3.899
