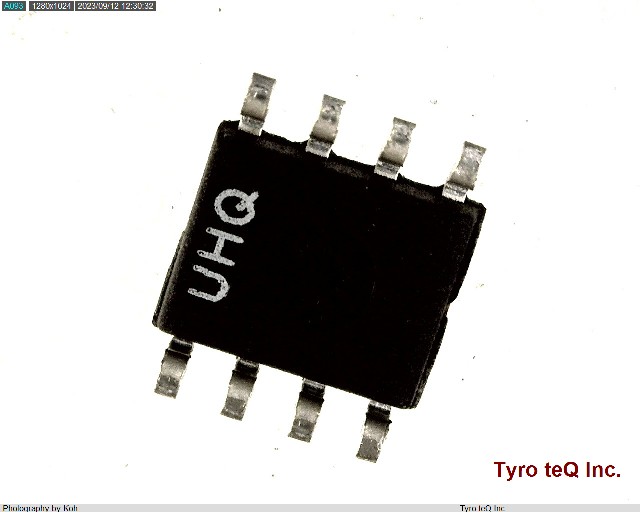

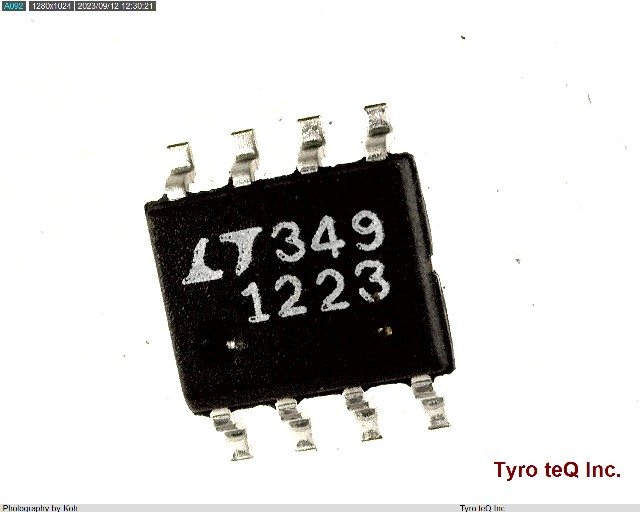

LT1223CS8 データシート

Name: LT1223CS8
Brand: LINEAR TECH
SKU: 220025901-0000-0000-0000

LT1223CS8 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1223CS8 の詳細情報

型番	LT1223CS8
メーカー	LINEAR TECH
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Average Bias Current-Max (IIB)	3 uA
Average Bias Current-Max (IIB) (uA)	3
Common-mode Reject Ratio-Nom	63 dB
Common-mode Reject Ratio-Nom (dB)	63
DLA Qualification	Not Qualified
Input Offset Voltage-Max	3000 uV
Input Offset Voltage-Max (uV)	3000
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9025 mm
Length (mm)	4.9025
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage Limit-Max (V)	-18
Neg Supply Voltage-Nom (Vsup)	-15 V
Negative Supply Voltage-Nom (V)	-15
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.752 mm
Seated Height-Max (mm)	1.752
Slew Rate-Nom	1300 V/us
Slew Rate-Nom (V/us)	1300
Sub Category	Operational Amplifier
Supply Voltage Limit-Max	18 V
Supply Voltage Limit-Max (V)	18
Supply Voltage-Nom (V)	15
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	100000 kHz
Width	3.899 mm
