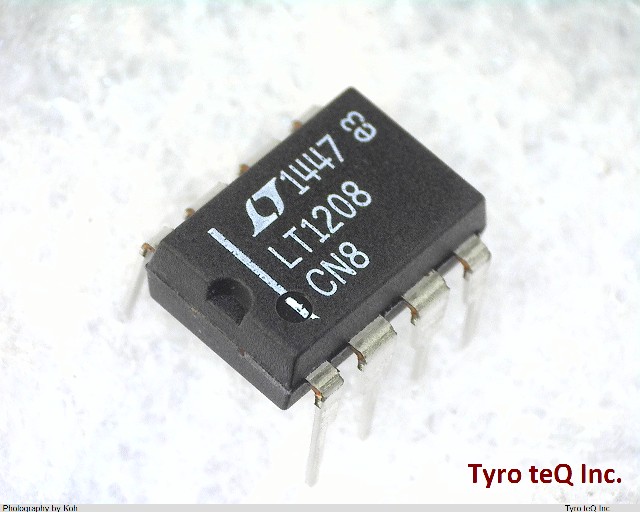

LT1208CN8 データシート

Name: LT1208CN8
Brand: LINEAR TECH
SKU: 220071644-0000-0000-0000

LT1208CN8 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1208CN8 の詳細情報

型番	LT1208CN8
メーカー	LINEAR TECH
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	8 uA
Average Bias Current-Max (IIB) (uA)	8
Bias Current-Max (IIB) @25C	8 uA
Common-mode Reject Ratio-Nom	98 dB
Common-mode Reject Ratio-Nom (dB)	98
DLA Qualification	Not Qualified
Frequency Compensation	YES
Input Offset Voltage-Max	3000 uV
Input Offset Voltage-Max (uV)	3000
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Low-Offset	NO
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage Limit-Max (V)	-18
Neg Supply Voltage-Nom (Vsup)	-15 V
Negative Supply Voltage-Nom (V)	-15
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	245
Power Supplies	+-5/+-15 V
Qualification Status	Not Qualified
Seated Height-Max	3.81 mm
Seated Height-Max (mm)	3.81
Slew Rate-Min	130 V/us
Slew Rate-Nom	250 V/us
Sub Category	Operational Amplifier
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Unity Gain BW-Nom	45000 kHz
Width	7.62 mm
