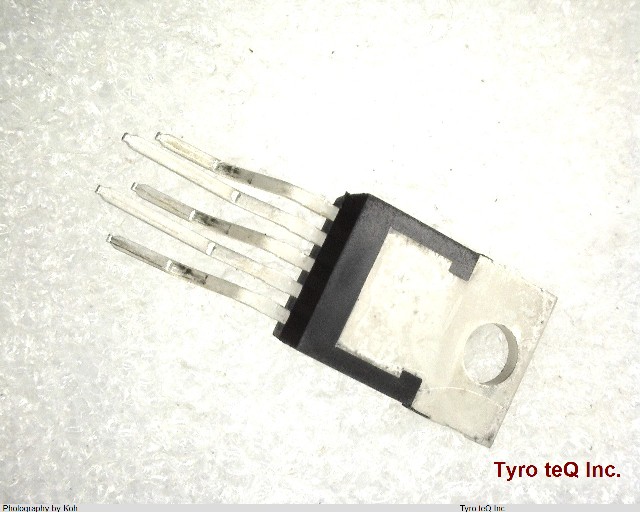

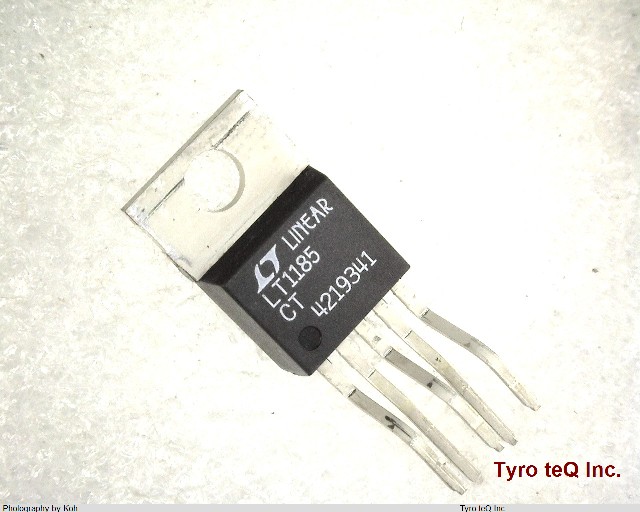

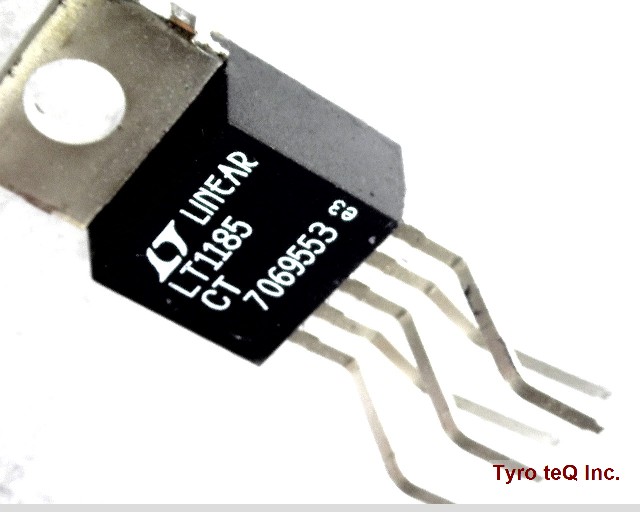

LT1185CT データシート

Name: LT1185CT
Brand: LINEAR TECH
SKU: 220000044-0000-0000-0000

LT1185CT - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1185CT の詳細情報

型番	LT1185CT
メーカー	LINEAR TECH
データシート
Adjustability	ADJUSTABLE
DLA Qualification	Not Qualified
Dropout Voltage1-Max	1 V
Dropout Voltage1-Max (V)	1
Dropout Voltage1-Nom	0.67 V
Input-Output Voltage Differential-Max	20 V
Input-Output Voltage Differential-Max (V)	20
Input-Output Voltage Differential-Min	1 V
Input-Output Voltage Differential-Min (V)	1
J-STD-609 Code	e3
JESD-30 Code	R-PSFM-G5
JESD-609 Code	e0
Line Regulation-Max (%/V)	0.01
Load Regulation-Max(%)	0.3 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	5
Operating Temperature TJ-Max (Cel)	125
Operating Temperature TJ-Min (Cel)	0
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Current1-Max	3 A
Output Current1-Max (A)	3
Output Voltage1-Max	25 V
Output Voltage1-Max (V)	25
Output Voltage1-Min	2.5 V
Output Voltage1-Min (V)	2.5
Package Body Material	PLASTIC/EPOXY
Package Code	ZIP
Package Equivalence Code	ZIP5,.15,.2,67TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	245
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE NEGATIVE SINGLE OUTPUT LDO REGULATOR
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	MATTE TIN OVER NICKEL
Terminal Form	GULL WING
Terminal Pitch	1.7 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	30
