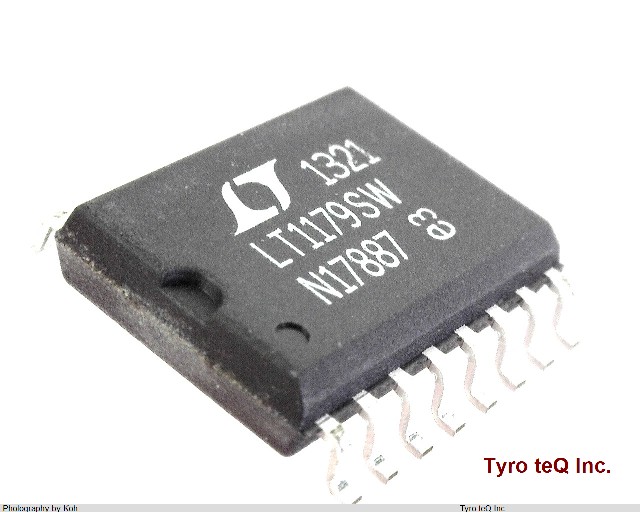

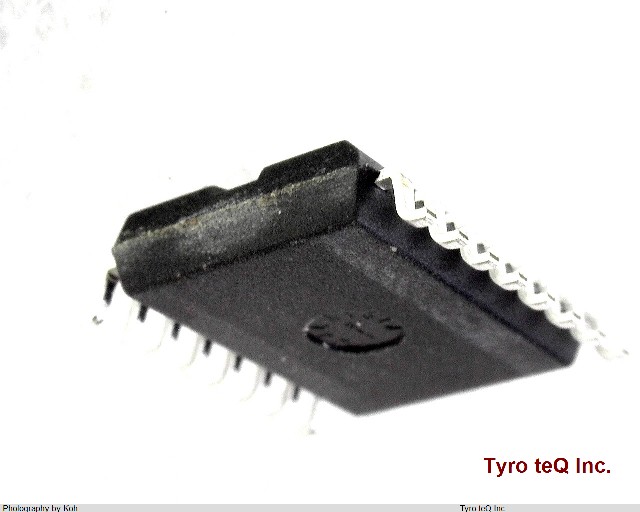

LT1179SW#PBF

Name: LT1179SW#PBF
Brand: LINEAR TECH
SKU: 400066470-0000-0000-0000

LT1179SW#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1179SW#PBF の詳細情報

型番	LT1179SW#PBF
メーカー	LINEAR TECH
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.007 uA
Average Bias Current-Max (IIB) (uA)	0.007
Bias Current-Max (IIB) @25C	0.006 uA
Common-mode Reject Ratio-Nom	104 dB
Common-mode Reject Ratio-Nom (dB)	104
DLA Qualification	Not Qualified
Frequency Compensation	YES
Input Offset Voltage-Max	1300 uV
Input Offset Voltage-Max (uV)	1300
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	10.2995 mm
Length (mm)	10.2995
Low-Offset	NO
Micropower	YES
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-22 V
Neg Supply Voltage Limit-Max (V)	-22
Neg Supply Voltage-Nom (Vsup)	-15 V
Negative Supply Voltage-Nom (V)	-15
Number of Functions	4
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5/+-15 V
Qualification Status	Not Qualified
Seated Height-Max	2.642 mm
Seated Height-Max (mm)	2.642
Slew Rate-Min	0.013 V/us
Slew Rate-Nom	0.04 V/us
Slew Rate-Nom (V/us)	0.04
Sub Category	Operational Amplifier
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
