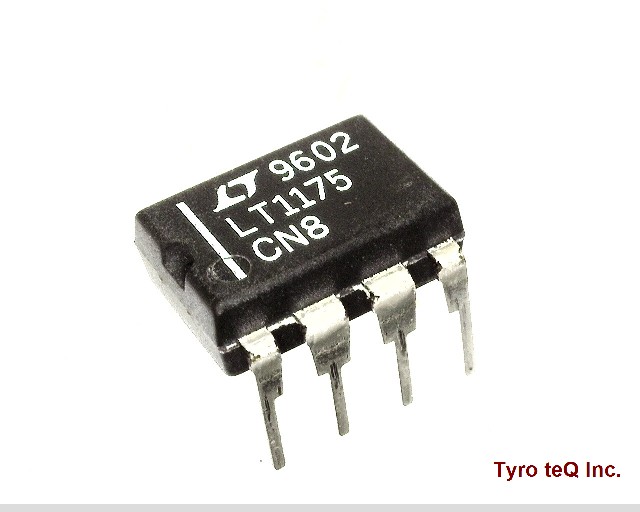

LT1175CN8 データシート

Name: LT1175CN8
Brand: LINEAR TECH
SKU: 220008185-0000-0000-0000

LT1175CN8 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1175CN8 の詳細情報

型番	LT1175CN8
メーカー	LINEAR TECH
データシート
Adjustability	ADJUSTABLE
Dropout Voltage1-Max	0.5 V
Dropout Voltage1-Nom	0.5 V
Input Voltage Absolute-Max	20 V
Input-Output Voltage Differential-Max	20 V
Input-Output Voltage Differential-Min	1 V
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	10.16 mm
Line Regulation-Max (%/V)	0.015
Load Regulation-Max	0.0175 %
Load Regulation-Max(%)	0.35 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature TJ-Max (Cel)	70
Operating Temperature TJ-Min (Cel)	0
Operating Temperature, TJ-Max	70 Cel
Operating Temperature, TJ-Min	0 Cel
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Current1-Max	0.5 A
Output Voltage1-Max	5.075 V
Output Voltage1-Max (V)	5.125
Output Voltage1-Min	2 V
Output Voltage1-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE NEGATIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	3.937 mm
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Pitch (mm)	2.54
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Voltage Tolerance-Max	1.4 %
Width	7.62 mm
Width (mm)	7.62
