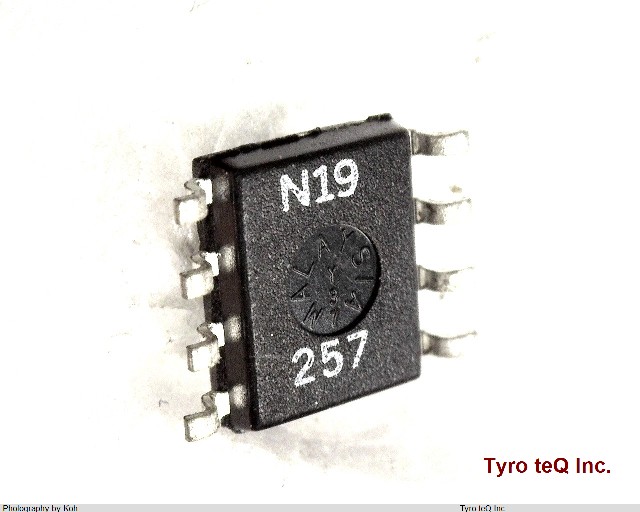

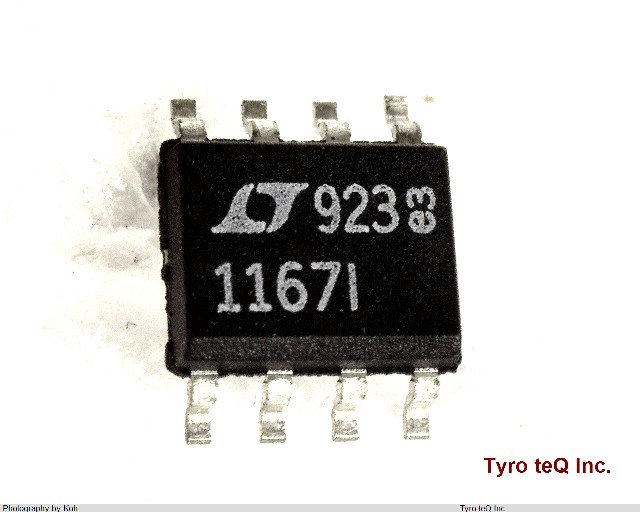

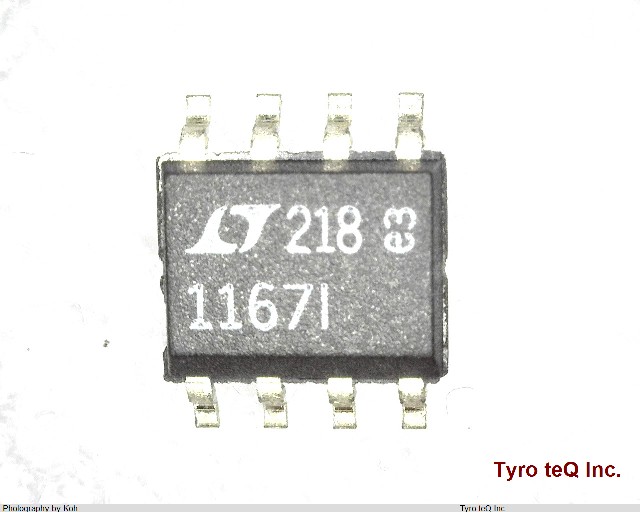

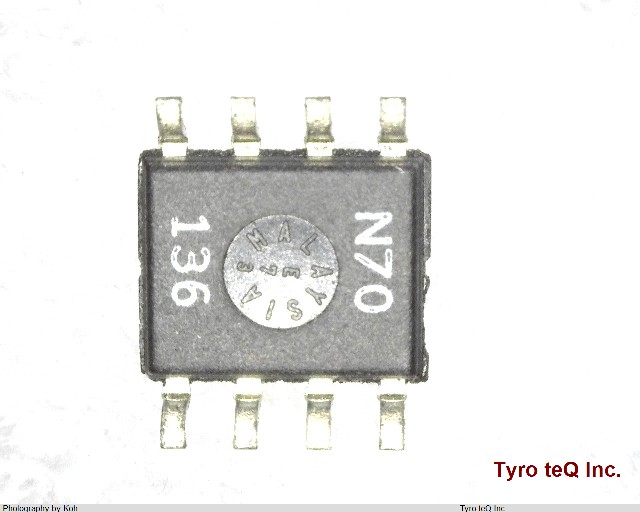

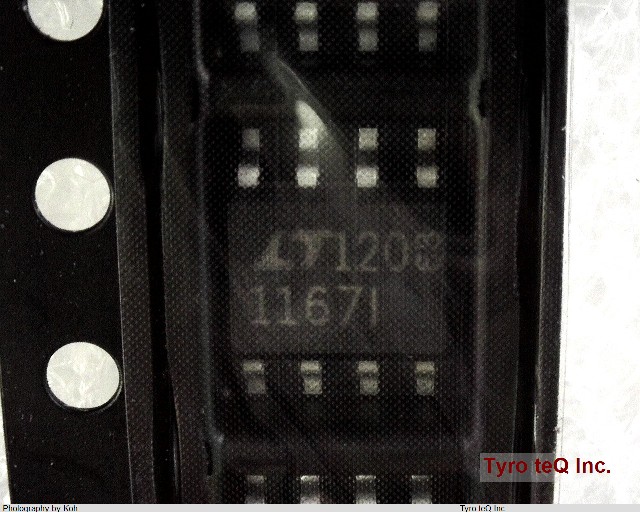

LT1167IS8 データシート

Name: LT1167IS8
Brand: LINEAR TECH
SKU: 220025822-0000-0000-0000

LT1167IS8 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1167IS8 の詳細情報

型番	LT1167IS8
メーカー	LINEAR TECH
データシート
Amplifier Type	INSTRUMENTATION AMPLIFIER
Average Bias Current-Max (IIB)	0.0006 uA
Average Bias Current-Max (IIB) (uA)	0.0006
Bandwidth (3dB)-Nom	1 MHz
Bandwidth (3dB)-Nom (MHz)	1
Common-mode Reject Ratio-Min	81 dB
Common-mode Reject Ratio-Min (dB)	81
Input Offset Current-Max (IIO)	0.00055 uA
Input Offset Current-Max (IIO) (uA)	0.00055
Input Offset Voltage-Max	80 uV
Input Offset Voltage-Max (uV)	80
J-STD-609 Code	e0
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Length (mm)	4.9
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-20 V
Neg Supply Voltage Limit-Max (V)	-20
Neg Supply Voltage-Nom (Vsup)	-15 V
Negative Supply Voltage-Nom (V)	-15
Non-linearity-Max	0.008 %
Non-linearity-Max (%)	0.008
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	235
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Seated Height-Max (mm)	1.75
Sub Category	Instrumentation Amplifier
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Voltage Gain-Max	10000
Voltage Gain-Min	1
Voltage Gain-Nom	10
