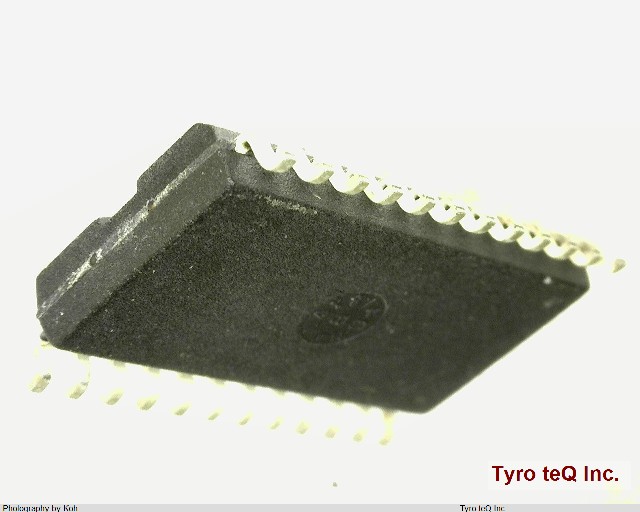

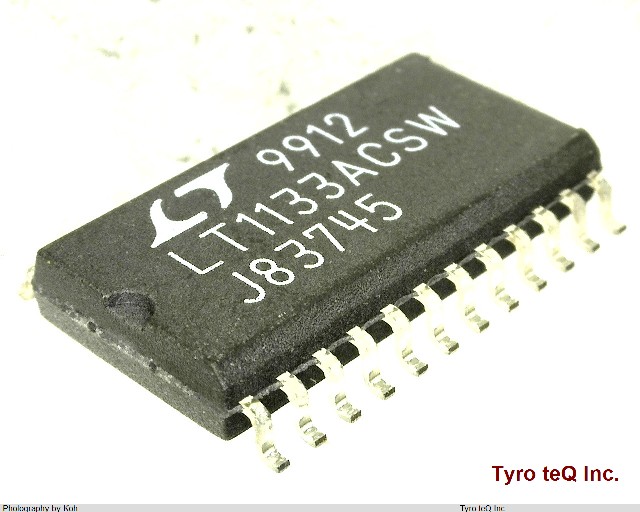

LT1133ACSW データシート

Name: LT1133ACSW
Brand: LINEAR TECH
SKU: 220008164-0000-0000-0000

LT1133ACSW - LINEAR TECH の商品詳細ページです。

No Image

２営業日以内に回答いたします

LT1133ACSW の詳細情報

型番	LT1133ACSW
メーカー	LINEAR TECH
データシート
DLA Qualification	Not Qualified
Differential Output	NO
Driver Number of Bits	3
High Level Input Current-Max (A)	2.0E-5
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-232
J-STD-609 Code	e0
JESD-30 Code	R-PDSO-G24
JESD-609 Code	e0
Length	15.395 mm
Length (mm)	15.395
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Out Swing-Min (V)	10
Output Low Current-Max (mA)	1.6
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP24,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies (V)	5
Qualification Status	Not Qualified
Receive Delay-Max	600 ns
Receive Delay-Max (ns)	600
Receiver Number of Bits	5
Seated Height-Max	2.642 mm
Seated Height-Max (mm)	2.642
Sub Category	Line Driver or Receivers
Supply Voltage-Nom	5 V
Supply Voltage-Nom (V)	5
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transmit Delay-Max	1300 ns
Transmit Delay-Max (ns)	1300
Width	7.493 mm
Width (mm)	7.493
