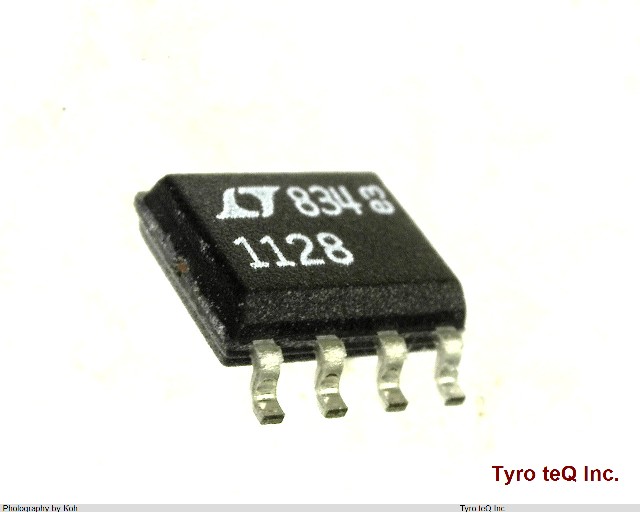

LT1128CS8 データシート Lineartech

LT1128CS8 - LINEAR TECH の商品詳細ページです。

1
No Image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

LT1128CS8 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LT1128CS8
メーカーLINEAR TECH
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.24 uA
Average Bias Current-Max (IIB) (uA) 0.24
Bias Current-Max (IIB) @25C 0.18 uA
Common-mode Reject Ratio-Nom 124 dB
Common-mode Reject Ratio-Nom (dB) 124
DLA Qualification Not Qualified
Frequency Compensation YES
Input Offset Voltage-Max 125 uV
Input Offset Voltage-Max (uV) 125
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Length 4.9 mm
Low-Offset YES
Micropower NO
Moisture Sensitivity Level 1
Neg Supply Voltage Limit-Max -22 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Packing Method TAPE AND REEL
Peak Reflow Temperature (Cel) 260
Power Supplies +-15 V
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Slew Rate-Min 4.5 V/us
Slew Rate-Nom 15 V/us
Sub Category Operational Amplifier
Supply Current-Max 11.5 mA
Supply Voltage Limit-Max 22 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Unity Gain BW-Nom 20000 kHz
Voltage Gain-Min 2000000
Width 3.9 mm
会社名称Linear Technology Corporate
所在地1630 McCarthy Blvd. Milpitas, CA 95035-7417 USA
URLhttp://www.linear.com/
