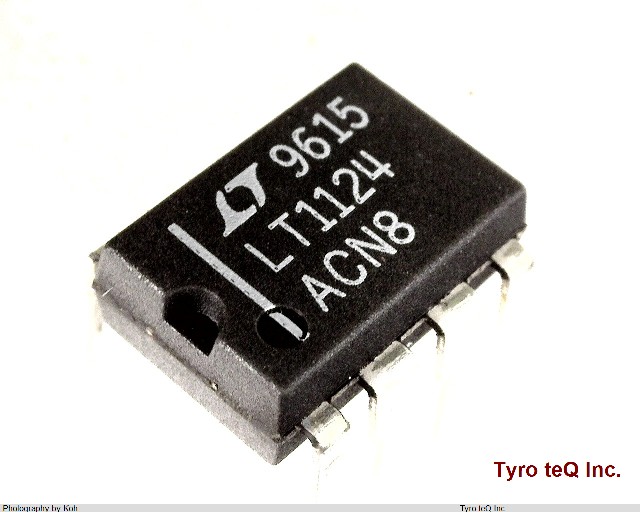

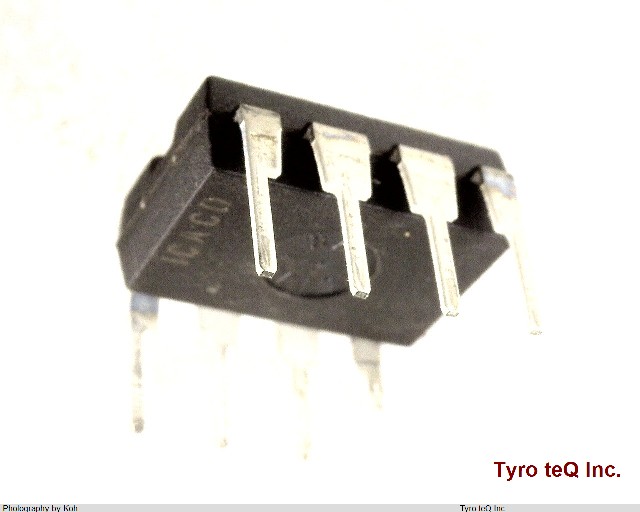

LT1124ACN8 データシート

Name: LT1124ACN8
Brand: LINEAR TECH
SKU: 220008146-0000-0000-0000

LT1124ACN8 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1124ACN8 の詳細情報

型番	LT1124ACN8
メーカー	LINEAR TECH
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.035 uA
Average Bias Current-Max (IIB) (uA)	0.035
Bias Current-Max (IIB) @25C	0.02 uA
Common-mode Reject Ratio-Min	112 dB
Common-mode Reject Ratio-Nom	125 dB
Common-mode Reject Ratio-Nom (dB)	125
DLA Qualification	Not Qualified
Frequency Compensation	YES
Input Offset Voltage-Max	120 uV
Input Offset Voltage-Max (uV)	120
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.78 mm
Low-Offset	YES
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-22 V
Neg Supply Voltage Limit-Max (V)	-22
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TAPE AND REEL
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	4.445 mm
Slew Rate-Min	2.6 V/us
Slew Rate-Nom	4 V/us
Sub Category	Operational Amplifier
Supply Current-Max	6 mA
Supply Voltage Limit-Max	22 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Unity Gain BW-Nom	12500 kHz
Voltage Gain-Min	1500000
Width	7.62 mm
