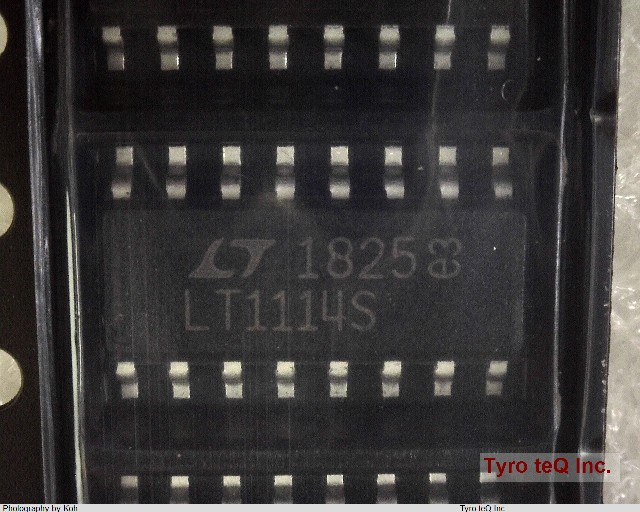

LT1114S データシート

Name: LT1114S
Brand: LINEAR TECH
SKU: 220008120-0000-0000-0000

LT1114S - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1114S の詳細情報

型番	LT1114S
メーカー	LINEAR TECH
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.00055 uA
Average Bias Current-Max (IIB) (uA)	0.00055
Bias Current-Max (IIB) @25C	0.00045 uA
Common-mode Reject Ratio-Nom	133 dB
Common-mode Reject Ratio-Nom (dB)	133
DLA Qualification	Not Qualified
Frequency Compensation	YES
Input Offset Voltage-Max	150 uV
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	9.9 mm
Low-Bias	YES
Low-Offset	YES
Micropower	YES
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-20 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	4
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	260
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	1.752 mm
Slew Rate-Min	0.13 V/us
Slew Rate-Nom	0.27 V/us
Sub Category	Operational Amplifier
Supply Current-Max	1.02 mA
Supply Voltage Limit-Max	20 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	750 kHz
Voltage Gain-Min	300000
Width	3.9 mm
