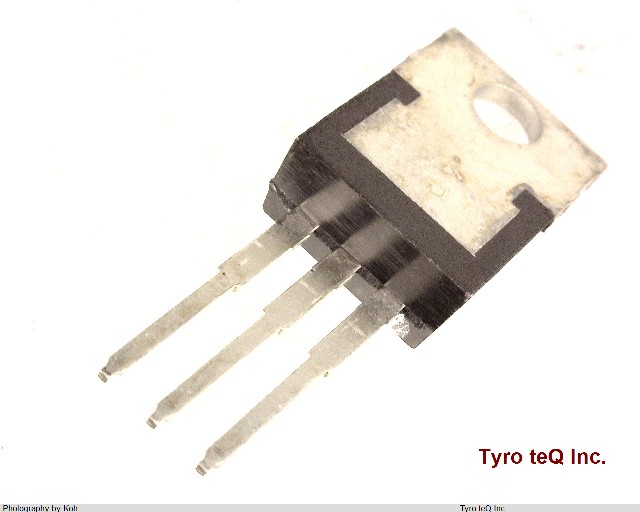

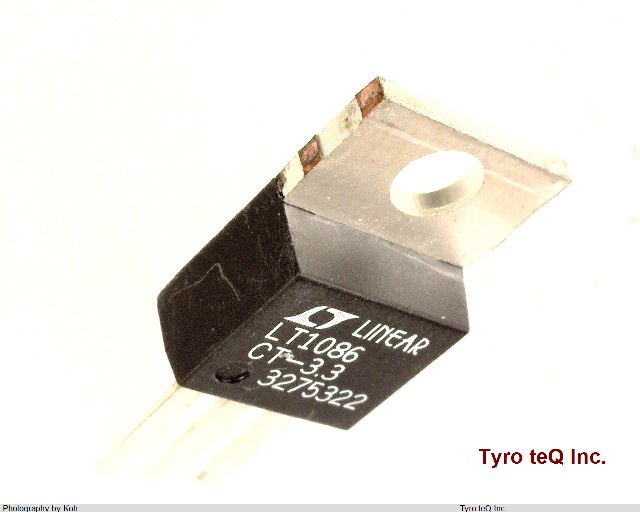

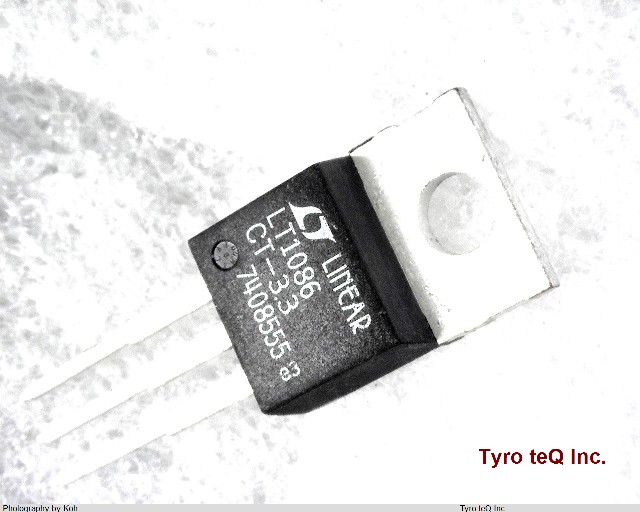

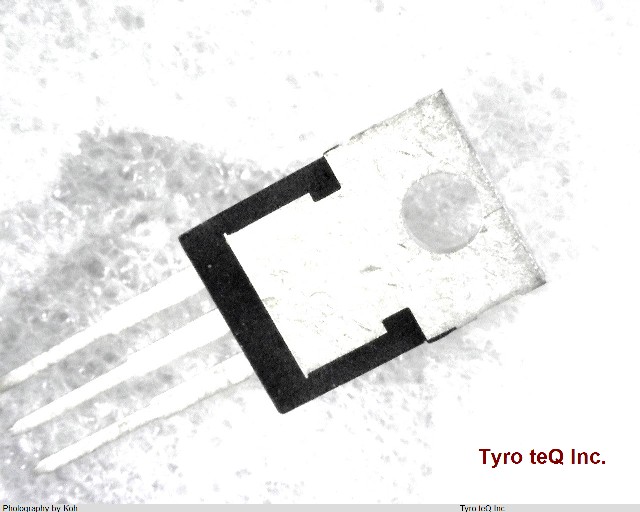

LT1086CT-3.3#PBF

Name: LT1086CT-3.3#PBF
Brand: LINEAR TECH
SKU: 400035659-0000-0000-0000

LT1086CT-3.3#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1086CT-3.3#PBF の詳細情報

型番	LT1086CT-3.3#PBF
メーカー	LINEAR TECH
Adjustability	FIXED
DLA Qualification	Not Qualified
Dropout Voltage1-Max	1.5 V
Dropout Voltage1-Max (V)	1.5
Dropout Voltage1-Nom	1.3 V
Dropout Voltage1-Nom (V)	1.3
Input Voltage Absolute-Max	30 V
Input Voltage Absolute-Max (V)	30
Input Voltage-Max	18 V
Input Voltage-Max (V)	18
Input Voltage-Min	4.75 V
Input Voltage-Min (V)	4.75
J-STD-609 Code	e3
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e3
Length	10.2235 mm
Length (mm)	10.2235
Line Regulation-Max	0.01 %
Line Regulation-Max (V)	0.01
Load Regulation-Max	0.025 %
Load Regulation-Max (V)	0.025
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature TJ-Max (Cel)	125
Operating Temperature TJ-Min (Cel)	0
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	1.5 A
Output Current1-Max (A)	1.5
Output Voltage1-Max	3.365 V
Output Voltage1-Max (V)	3.365
Output Voltage1-Min	3.235 V
Output Voltage1-Min (V)	3.235
Output Voltage1-Nom	3.3 V
Output Voltage1-Nom (V)	3.3
Package Body Material	PLASTIC/EPOXY
Package Code	TO-220
Package Equivalence Code	SIP3,.1TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	260
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	MATTE TIN OVER NICKEL
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	30
