LT1086CT-3.3 Lineartech

LT1086CT-3.3 - LINEAR TECH の商品詳細ページです。

1

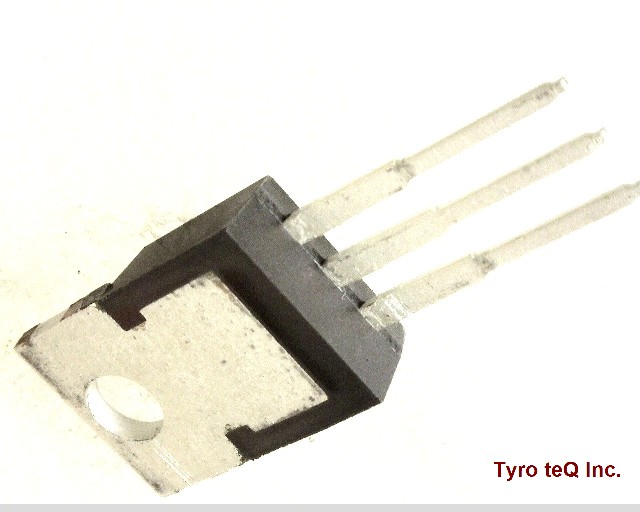

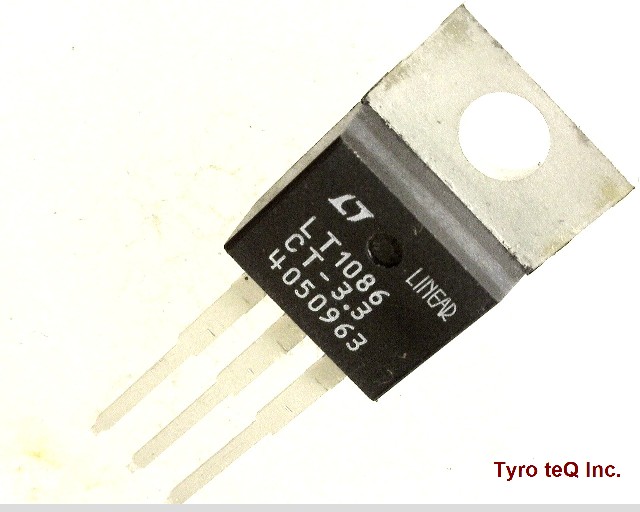

LT1086CT-3.3
  • LT1086CT-3.3
  • LT1086CT-3.3
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

LT1086CT-3.3 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LT1086CT-3.3
メーカーLINEAR TECH
Adjustability FIXED
DLA Qualification Not Qualified
Dropout Voltage1-Max 1.5 V
Dropout Voltage1-Max (V) 1.5
Dropout Voltage1-Nom 1.3 V
Dropout Voltage1-Nom (V) 1.3
Input Voltage Absolute-Max 30 V
Input Voltage Absolute-Max (V) 30
Input Voltage-Max 18 V
Input Voltage-Max (V) 18
Input Voltage-Min 4.75 V
Input Voltage-Min (V) 4.75
J-STD-609 Code e3
JESD-30 Code R-PSFM-T3
JESD-609 Code e0
Length 10.2235 mm
Length (mm) 10.2235
Line Regulation-Max 0.01 %
Line Regulation-Max (V) 0.01
Load Regulation-Max 0.0132 %
Load Regulation-Max (V) 0.025
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 3
Operating Temperature, TJ-Max 125 Cel
Operating Temperature, TJ-Min 0 Cel
Output Current1-Max 1.5 A
Output Voltage1-Max 3.365 V
Output Voltage1-Min 3.234 V
Output Voltage1-Nom 3.3 V
Package Body Material PLASTIC/EPOXY
Package Code TO-220
Package Equivalence Code SIP3,.1TB
Package Shape RECTANGULAR
Package Style FLANGE MOUNT Meter
Peak Reflow Temperature (Cel) 235
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 15.113 mm
Sub Category Other Regulators
Surface Mount NO
Technology BIPOLAR
Terminal Finish MATTE TIN OVER NICKEL
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 20
Voltage Tolerance-Max 2 %
Width 4.3815 mm
会社名称Linear Technology Corporate
所在地1630 McCarthy Blvd. Milpitas, CA 95035-7417 USA
URLhttp://www.linear.com/
