LT1085CM-3.3#PBF Lineartech

LT1085CM-3.3#PBF - LINEAR TECH の商品詳細ページです。

1

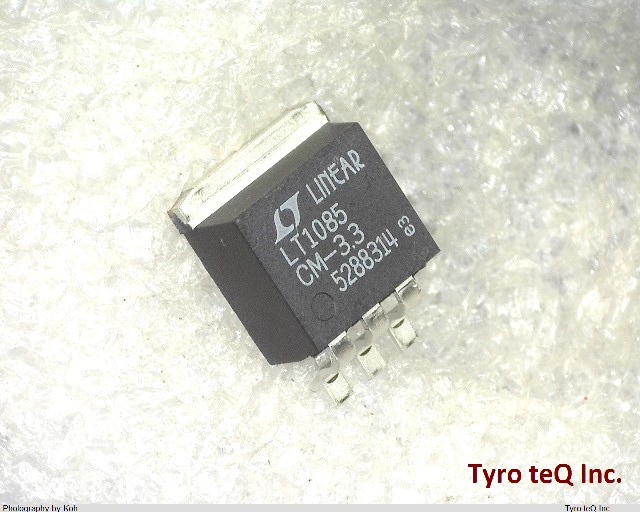

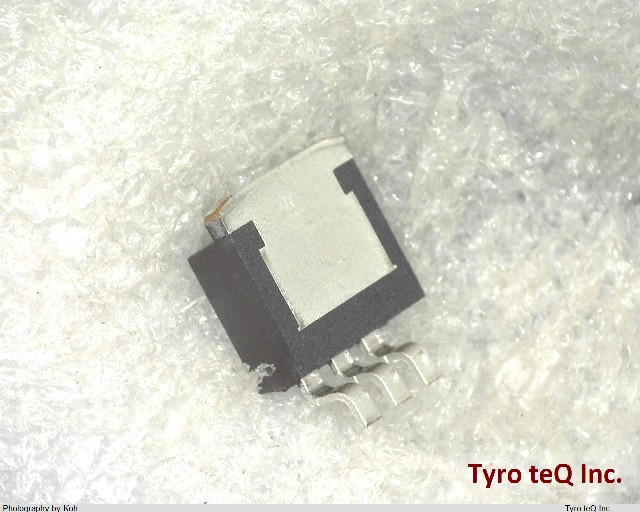

LT1085CM-3.3#PBF
  • LT1085CM-3.3#PBF
  • LT1085CM-3.3#PBF
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

LT1085CM-3.3#PBF の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LT1085CM-3.3#PBF
メーカーLINEAR TECH
Adjustability FIXED
DLA Qualification Not Qualified
Dropout Voltage1-Max 1.5 V
Dropout Voltage1-Max (V) 1.5
Dropout Voltage1-Nom 1.5 V
Input Voltage Absolute-Max 30 V
Input Voltage-Max 15 V
Input Voltage-Max (V) 15
Input Voltage-Min 4.8 V
Input Voltage-Min (V) 4.8
J-STD-609 Code e3
JESD-30 Code R-PSSO-G3
JESD-609 Code e3
Length 10.2235 mm
Length (mm) 10.2235
Line Regulation-Max 0.006 %
Load Regulation-Max 0.02 %
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 3
Operating Temperature TJ-Max (Cel) 125
Operating Temperature TJ-Min (Cel) 0
Operating Temperature, TJ-Max 125 Cel
Operating Temperature, TJ-Min 0 Cel
Output Current1-Max 3 A
Output Current1-Max (A) 3
Output Voltage1-Max 3.365 V
Output Voltage1-Max (V) 3.365
Output Voltage1-Min 3.235 V
Output Voltage1-Min (V) 3.235
Output Voltage1-Nom 3.3 V
Output Voltage1-Nom (V) 3.3
Package Body Material PLASTIC/EPOXY
Package Code TO-263
Package Equivalence Code SMSIP3H,.55TB
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 4.9 mm
Seated Height-Max (mm) 4.9
Sub Category Other Regulators
Surface Mount YES
Technology BIPOLAR
Terminal Finish MATTE TIN OVER NICKEL
Terminal Form GULL WING
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 30
会社名称Linear Technology Corporate
所在地1630 McCarthy Blvd. Milpitas, CA 95035-7417 USA
URLhttp://www.linear.com/
