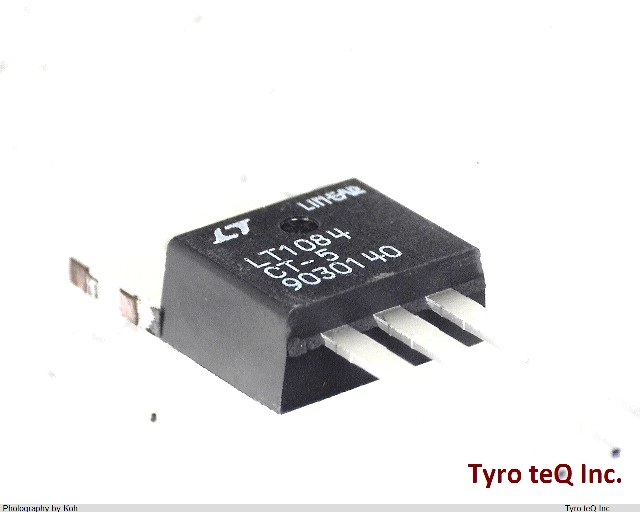

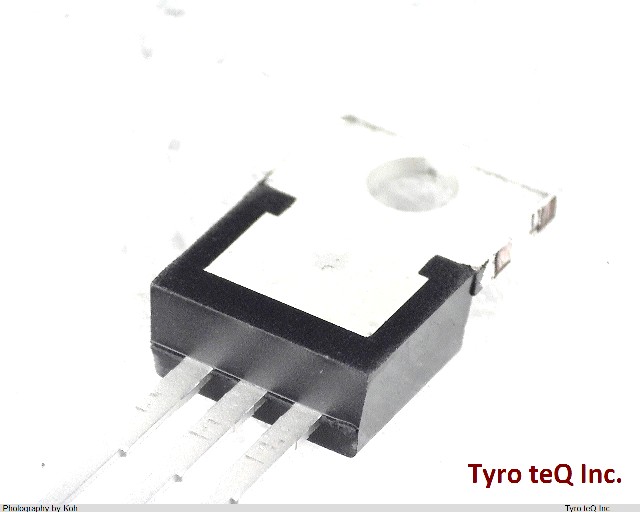

LT1084CT-5 データシート

Name: LT1084CT-5
Brand: LINEAR TECH
SKU: 220008090-0000-0000-0000

LT1084CT-5 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1084CT-5 の詳細情報

型番	LT1084CT-5
メーカー	LINEAR TECH
データシート
Adjustability	FIXED
DLA Qualification	Not Qualified
Dropout Voltage1-Max	1.5 V
Dropout Voltage1-Max (V)	1.5
Dropout Voltage1-Nom	1.3 V
Input Voltage Absolute-Max	30 V
Input Voltage-Max	20 V
Input Voltage-Max (V)	20
Input Voltage-Min	6.5 V
Input Voltage-Min (V)	6.5
J-STD-609 Code	e3
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e0
Line Regulation-Max	0.01 %
Load Regulation-Max	0.02 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature TJ-Max (Cel)	125
Operating Temperature TJ-Min (Cel)	0
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Operating Temperature-Max	125 Cel
Operating Temperature-Min	0 Cel
Output Current1-Max	5 A
Output Current1-Max (A)	5
Output Voltage1-Max	5.1 V
Output Voltage1-Max (V)	5.1
Output Voltage1-Min	4.9 V
Output Voltage1-Min (V)	4.9
Output Voltage1-Nom	5 V
Output Voltage1-Nom (V)	5
Package Body Material	PLASTIC/EPOXY
Package Code	TO-220
Package Equivalence Code	SIP3,.1TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	MATTE TIN OVER NICKEL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	2 %
Voltage Tolerance-Max (%)	2
