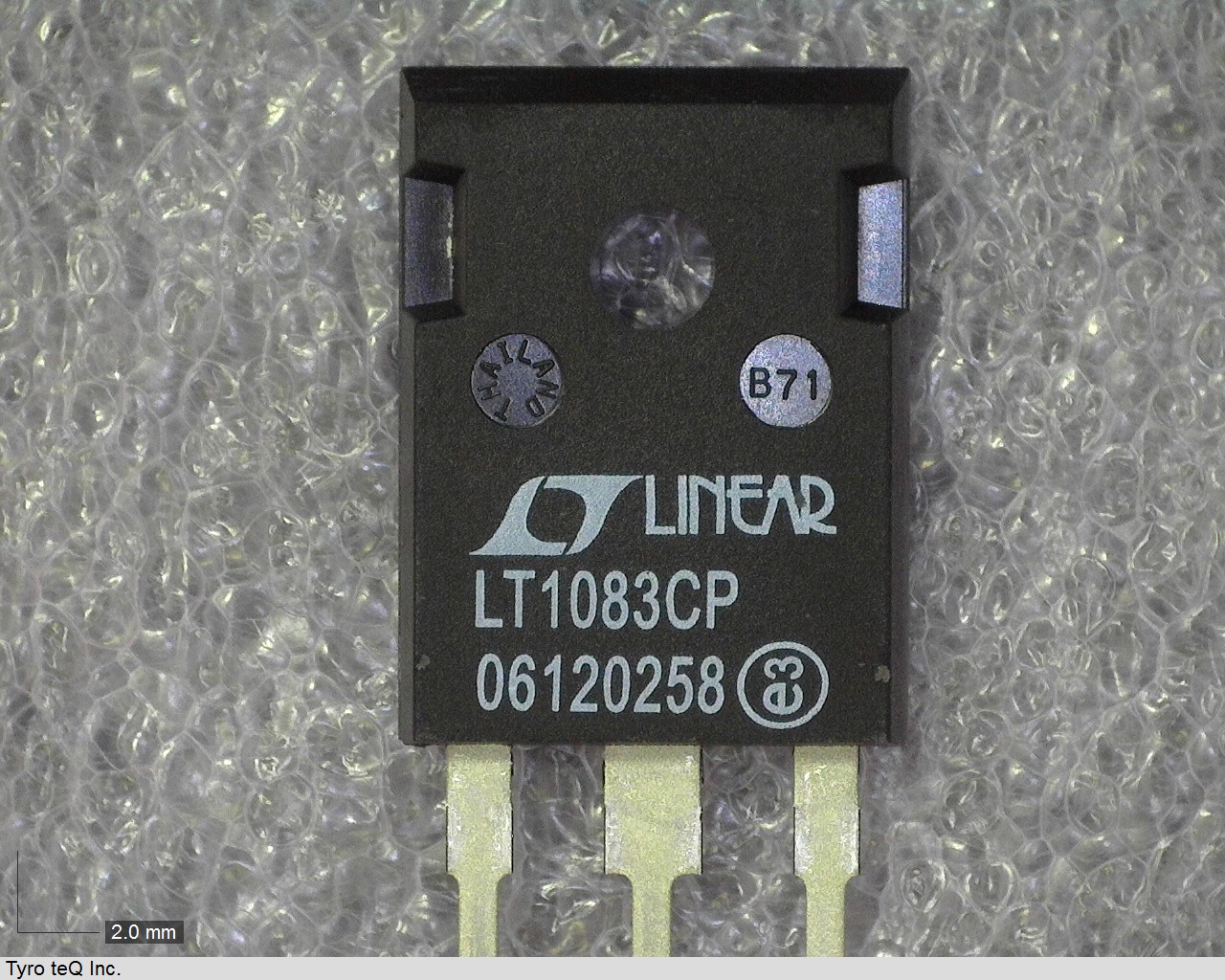

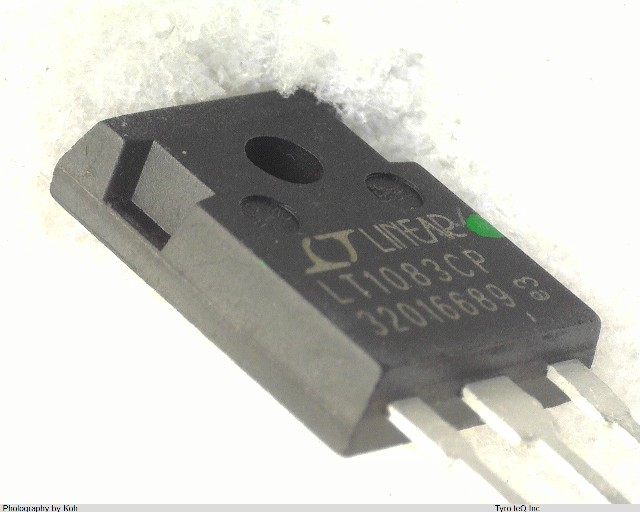

LT1083CP データシート

Name: LT1083CP
Brand: LINEAR TECH
SKU: 220001891-0000-0000-0000

LT1083CP - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1083CP の詳細情報

型番	LT1083CP
メーカー	LINEAR TECH
データシート
Adjustability	ADJUSTABLE
Dropout Voltage1-Max	1.5 V
Dropout Voltage1-Nom	1.3 V
Input Voltage Absolute-Max	30 V
Input Voltage-Max	20 V
Input Voltage-Min	6.5 V
Input-Output Voltage Differential-Max	15 V
Input-Output Voltage Differential-Min	1.5 V
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e0
Line Regulation-Max	0.01 %
Line Regulation-Max (%/V)	0.033
Load Regulation-Max	0.0132 %
Load Regulation-Max(%)	0.4 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Operating Temperature-Max	125 Cel
Operating Temperature-Min	0 Cel
Output Current1-Max	7.5 A
Output Voltage1-Max	3.366 V
Output Voltage1-Min	1.2 V
Output Voltage1-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY

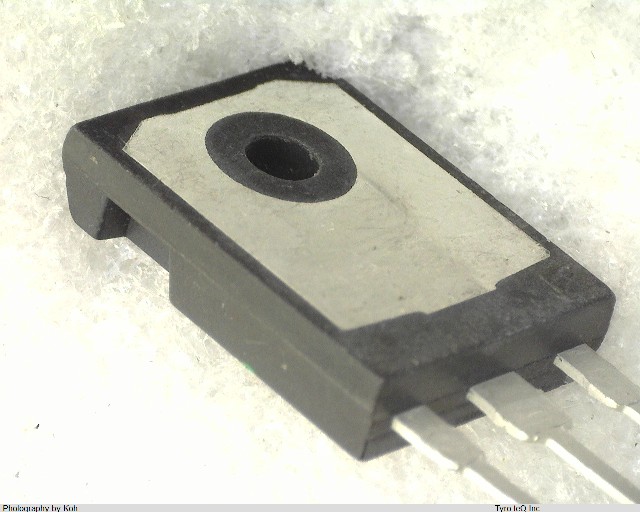

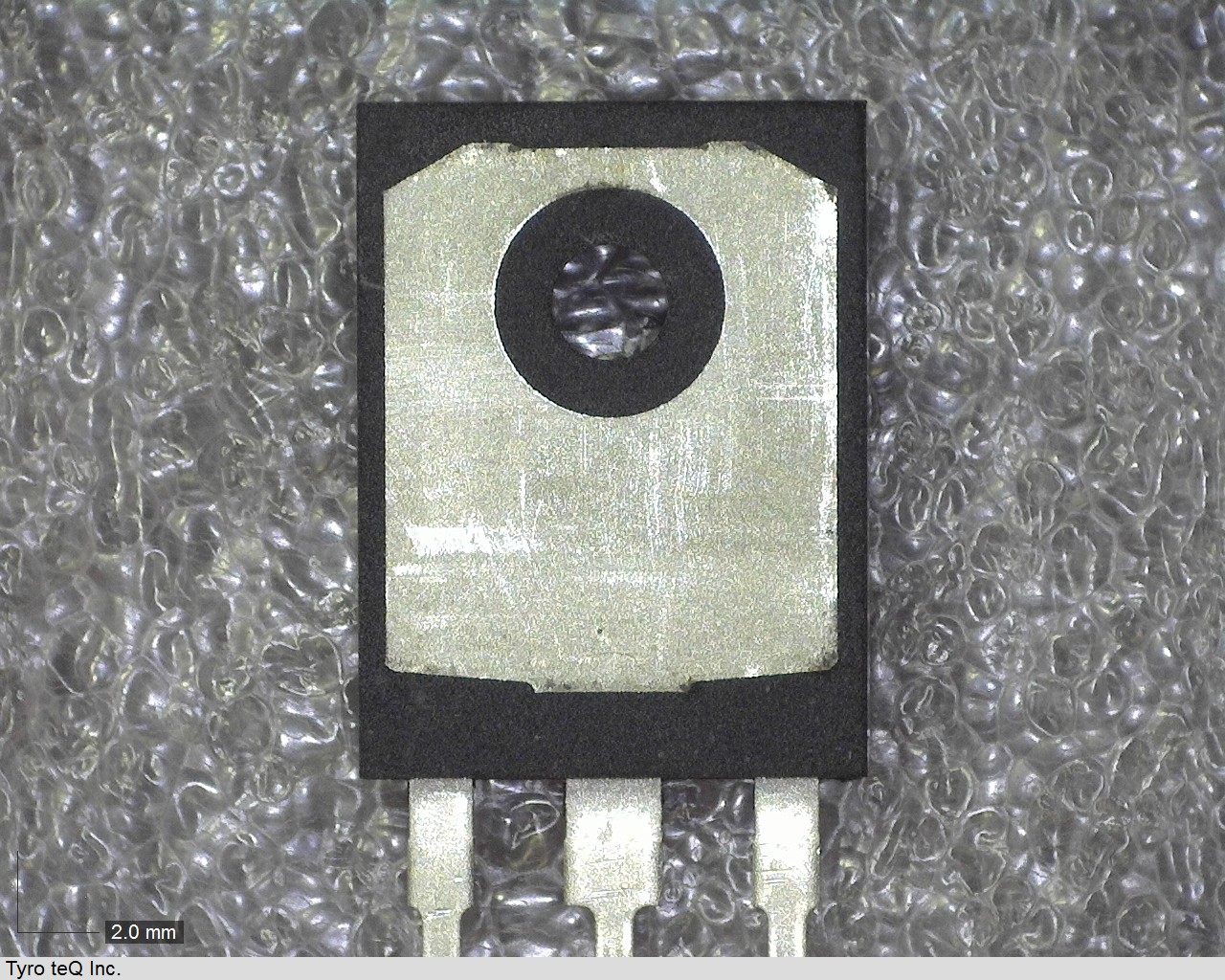

Package Code	TO-247
Package Equivalence Code	SIP3,.1,215
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	235
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	5.5 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	20
Voltage Tolerance-Max	2 %
