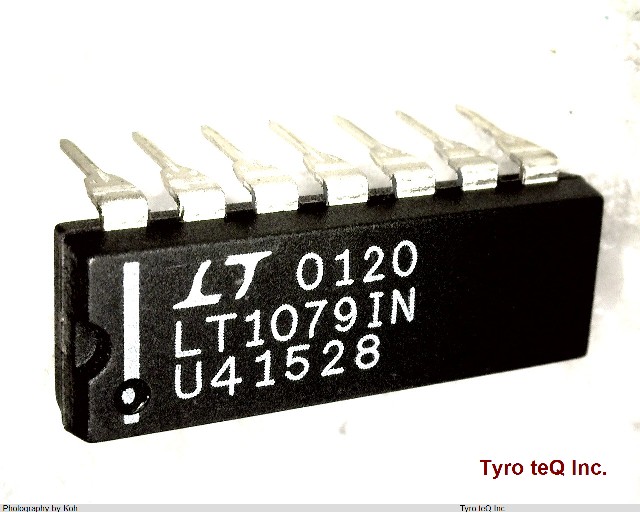

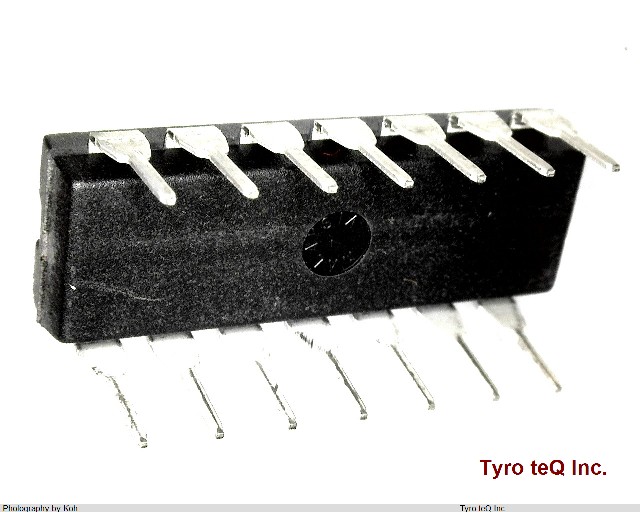

LT1079IN データシート

Name: LT1079IN
Brand: LINEAR TECH
SKU: 220025652-0000-0000-0000

LT1079IN - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1079IN の詳細情報

型番	LT1079IN
メーカー	LINEAR TECH
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.012 uA
Average Bias Current-Max (IIB) (uA)	0.012
Bias Current-Max (IIB) @25C	0.01 uA
Common-mode Reject Ratio-Min	94 dB
Common-mode Reject Ratio-Min (dB)	94
Common-mode Reject Ratio-Nom	110 dB
Common-mode Reject Ratio-Nom (dB)	110
DLA Qualification	Not Qualified
Frequency Compensation	YES
Input Offset Voltage-Max	600 uV
Input Offset Voltage-Max (uV)	600
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Low-Offset	YES
Micropower	YES
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-22 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	4
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5/+-15 V
Qualification Status	Not Qualified
Seated Height-Max	3.937 mm
Slew Rate-Min	0.04 V/us
Slew Rate-Nom	0.1 V/us
Sub Category	Operational Amplifier
Supply Current-Max	0.38 mA
Supply Voltage Limit-Max	22 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	200 kHz
Voltage Gain-Min	120000
Width	7.62 mm
