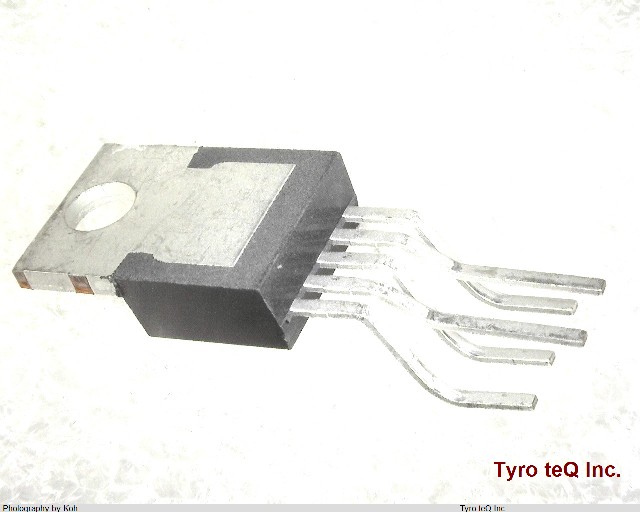

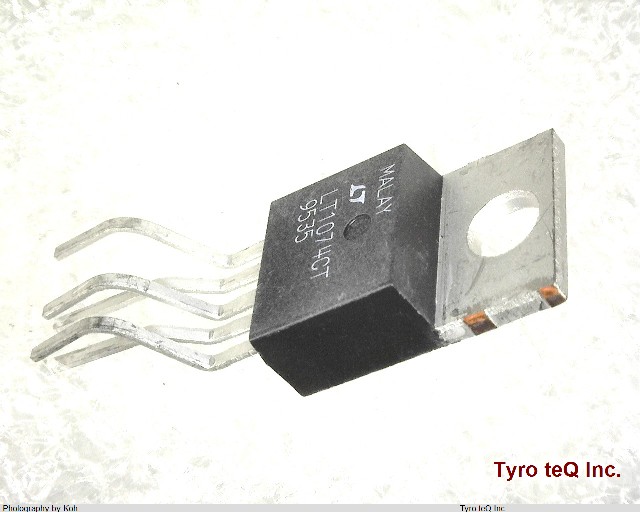

LT1074CT データシート

Name: LT1074CT
Brand: LINEAR TECH
SKU: 220008062-0000-0000-0000

LT1074CT - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1074CT の詳細情報

型番	LT1074CT
メーカー	LINEAR TECH
データシート
Additional Feature	ALSO OPERATES IN ADJUSTABLE MODE FROM 2.5V TO 50V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	40 V
Input Voltage-Max (V)	60
Input Voltage-Min	7.3 V
Input Voltage-Min (V)	8
Input Voltage-Nom	25 V
Input Voltage-Nom (V)	25
J-STD-609 Code	e0
JESD-30 Code	R-PSFM-T5
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	0
Output Current-Max	5 A
Output Current-Max (A)	8.5
Output Voltage-Nom	2.21 V
Output Voltage-Nom (V)	2.21
Package Body Material	PLASTIC/EPOXY
Package Code	SFM
Package Equivalence Code	ZIP5,.15,.2,67TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	245
Qualification Status	Not Qualified
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	11 mA
Supply Current-Max (mA)	11
Surface Mount	NO
Switcher Configuration	BUCK
Switching Frequency-Max	100 kHz
Switching Frequency-Max (kHz)	125
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN OVER NICKEL
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.27 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	30
