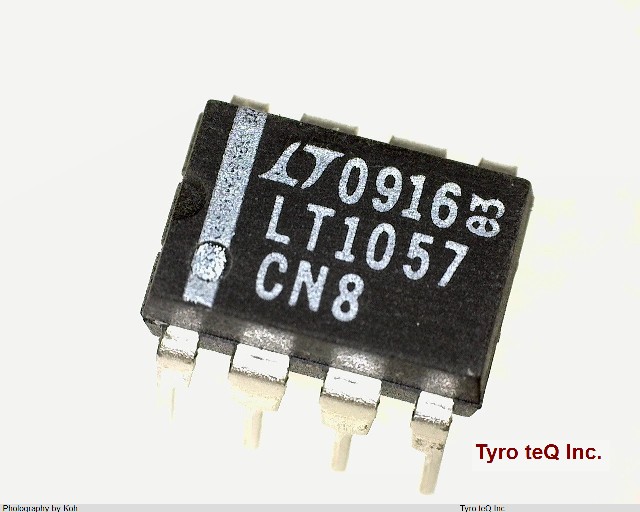

LT1057CN8#PBF

Name: LT1057CN8#PBF
Brand: LINEAR TECH
SKU: 220199830-0000-0000-0000

LT1057CN8#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1057CN8#PBF の詳細情報

型番	LT1057CN8#PBF
メーカー	LINEAR TECH
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	7.5E-5 uA
Average Bias Current-Max (IIB) (uA)	7.5E-5
Bias Current-Max (IIB) @25C	7.5E-5 uA
Common-mode Reject Ratio-Nom	96 dB
Common-mode Reject Ratio-Nom (dB)	96
DLA Qualification	Not Qualified
Frequency Compensation	YES
Input Offset Current-Max (IIO)	0.00025 uA
Input Offset Voltage-Max	1400 uV
Input Offset Voltage-Max (uV)	1400
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e3
Low-Bias	YES
Low-Offset	NO
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-20 V
Neg Supply Voltage Limit-Max (V)	-20
Neg Supply Voltage-Nom (Vsup)	-15 V
Negative Supply Voltage-Nom (V)	-15
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	3.937 mm
Seated Height-Max (mm)	3.937
Slew Rate-Min	8 V/us
Slew Rate-Nom	13 V/us
Slew Rate-Nom (V/us)	13
Sub Category	Operational Amplifier
Supply Current-Max	6.4 mA
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
