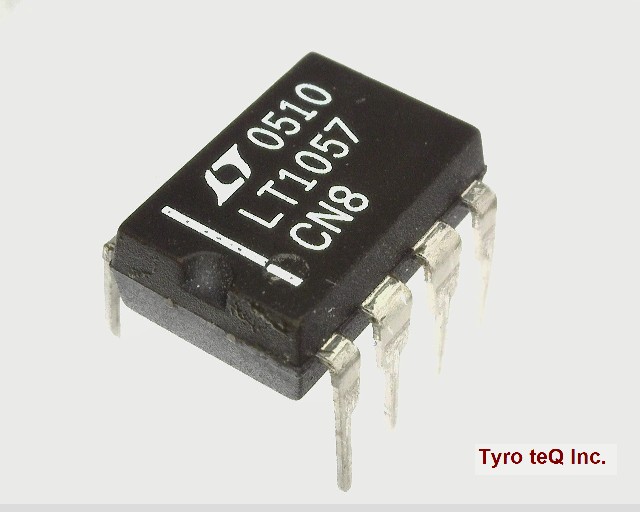

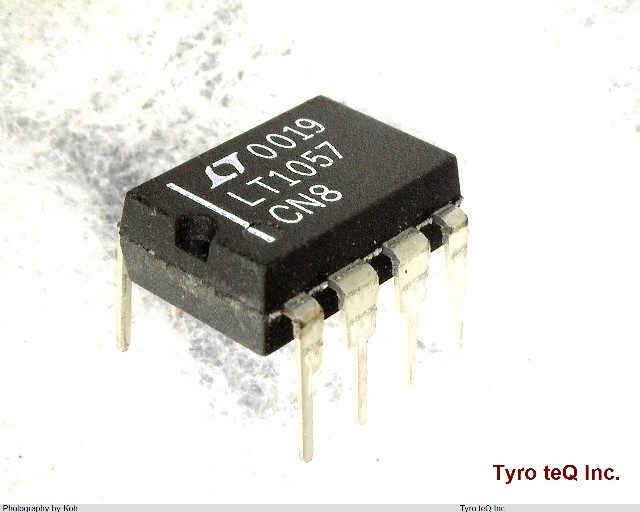

LT1057CN8 データシート

Name: LT1057CN8
Brand: LINEAR TECH
SKU: 220000043-0000-0000-0000

LT1057CN8 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1057CN8 の詳細情報

型番	LT1057CN8
メーカー	LINEAR TECH
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	7.5E-5 uA
Average Bias Current-Max (IIB) (uA)	7.5E-5
Bias Current-Max (IIB) @25C	7.5E-5 uA
Common-mode Reject Ratio-Nom	96 dB
Common-mode Reject Ratio-Nom (dB)	96
DLA Qualification	Not Qualified
Frequency Compensation	YES
Input Offset Current-Max (IIO)	0.00025 uA
Input Offset Voltage-Max	1400 uV
Input Offset Voltage-Max (uV)	1400
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Low-Bias	YES
Low-Offset	NO
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-20 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	3.937 mm
Slew Rate-Min	8 V/us
Slew Rate-Nom	13 V/us
Sub Category	Operational Amplifier
Supply Current-Max	6.4 mA
Supply Voltage Limit-Max	20 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	5000 kHz
Voltage Gain-Min	50000
Width	7.62 mm
