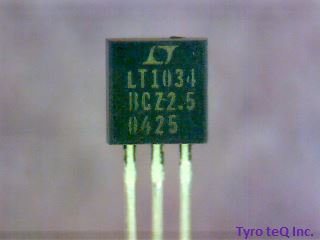

LT1034BCZ-2.5#PBF

Name: LT1034BCZ-2.5#PBF
Brand: LINEAR TECH
SKU: 220208209-0000-0000-0000

LT1034BCZ-2.5#PBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1034BCZ-2.5#PBF の詳細情報

型番	LT1034BCZ-2.5#PBF
メーカー	LINEAR TECH
Additional Feature	ALSO CONTAINS AN AUXILIARY REFERENCE OF 7V
Analog IC - Other Type	TWO TERMINAL VOLTAGE REFERENCE
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	O-PBCY-T3
JESD-609 Code	e3
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	2
Number of Terminals	3
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Voltage-Max	2.57 V
Output Voltage-Max (V)	2.57
Output Voltage-Min	2.43 V
Output Voltage-Min (V)	2.43
Output Voltage-Nom	2.5 V
Output Voltage-Nom (V)	2.5
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	SIP3,.1,50
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Sub Category	Voltage References
Supply Current-Max (Isup)	0.03 mA
Supply Current-Max (mA)	0.03
Surface Mount	NO
Technology	BIPOLAR
Temp Coef of Voltage-Max	20 ppm/Cel
Temp Coef of Voltage-Max (ppm/Cel)	20
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.27 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Trim/Adjustable Output	NO V
