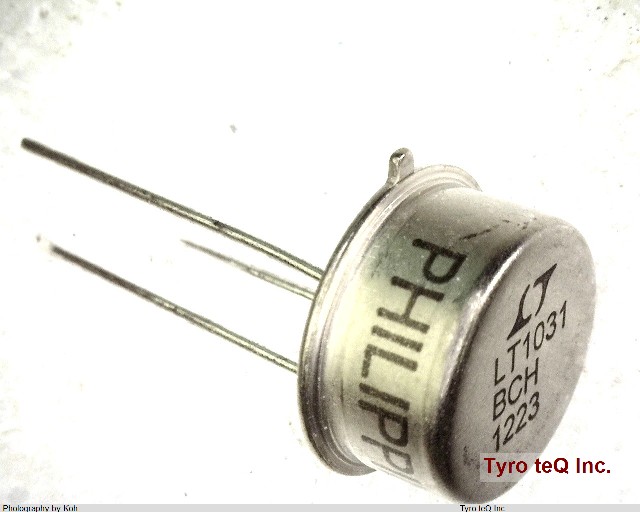

LT1031BCH データシート

Name: LT1031BCH
Brand: LINEAR TECH
SKU: 220071243-0000-0000-0000

LT1031BCH - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1031BCH の詳細情報

型番	LT1031BCH
メーカー	LINEAR TECH
データシート
Analog IC - Other Type	THREE TERMINAL VOLTAGE REFERENCE
DLA Qualification	Not Qualified
J-STD-609 Code	e0
JESD-30 Code	O-MBCY-W3
JESD-609 Code	e3
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Voltage-Max	10.005 V
Output Voltage-Max (V)	10.005
Output Voltage-Min	9.995 V
Output Voltage-Min (V)	9.995
Output Voltage-Nom	10 V
Output Voltage-Nom (V)	10
Package Body Material	METAL
Package Equivalence Code	CAN3/4,.2
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	245
Qualification Status	Not Qualified
Sub Category	Voltage References
Supply Current-Max (Isup)	2 mA
Supply Current-Max (mA)	2
Supply Voltage-Max (V)	40
Supply Voltage-Max (Vsup)	40 V
Supply Voltage-Min (V)	11.4
Supply Voltage-Min (Vsup)	11.4 V
Supply Voltage-Nom (V)	15
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temp Coef of Voltage-Max	5 ppm/Cel
Temp Coef of Voltage-Max (ppm/Cel)	5
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	WIRE
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	20
Trim/Adjustable Output	NO V
Voltage Tolerance-Max	0.05 %
Voltage Tolerance-Max (%)	0.05
