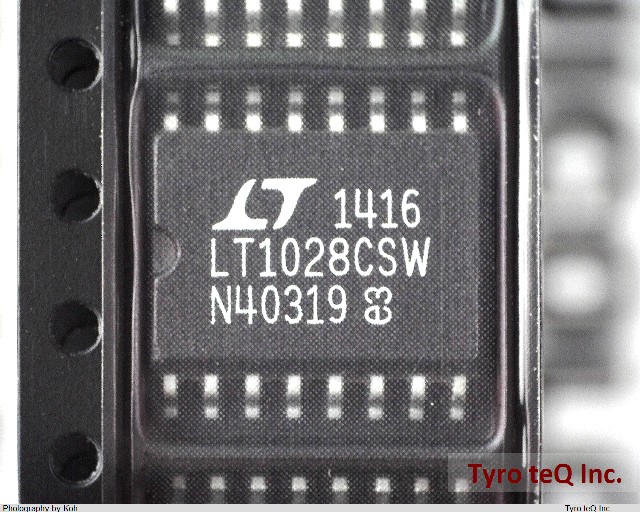

LT1028CSW#PBF
  • LT1028CSW#PBF
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

LT1028CSW#PBF の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LT1028CSW#PBF
メーカーLINEAR TECH
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.24 uA
Average Bias Current-Max (IIB) (uA) 0.24
Bias Current-Max (IIB) @25C 0.18 uA
Common-mode Reject Ratio-Nom 124 dB
Common-mode Reject Ratio-Nom (dB) 124
DLA Qualification Not Qualified
Frequency Compensation YES (AVCL>=2)
Input Offset Voltage-Max 125 uV
Input Offset Voltage-Max (uV) 125
J-STD-609 Code e3
JESD-30 Code R-PDSO-G16
JESD-609 Code e3
Length 10.3 mm
Length (mm) 10.3
Low-Offset YES
Moisture Sensitivity Level 1
Neg Supply Voltage Limit-Max -22 V
Neg Supply Voltage Limit-Max (V) -22
Neg Supply Voltage-Nom (Vsup) -15 V
Negative Supply Voltage-Nom (V) -15
Number of Functions 1
Number of Terminals 16
Operating Temperature-Max 70 Cel
Operating Temperature-Max (Cel) 70
Operating Temperature-Min 0 Cel
Operating Temperature-Min (Cel) 0
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Peak Reflow Temperature (Cel) 260
Power Supplies +-15 V
Qualification Status Not Qualified
Seated Height-Max 2.65 mm
Seated Height-Max (mm) 2.65
Slew Rate-Min 11 V/us
Slew Rate-Nom 15 V/us
Slew Rate-Nom (V/us) 15
Sub Category Operational Amplifier
Supply Current-Max 10.5 mA
Surface Mount YES
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
会社名称Linear Technology Corporate
所在地1630 McCarthy Blvd. Milpitas, CA 95035-7417 USA
URLhttp://www.linear.com/
