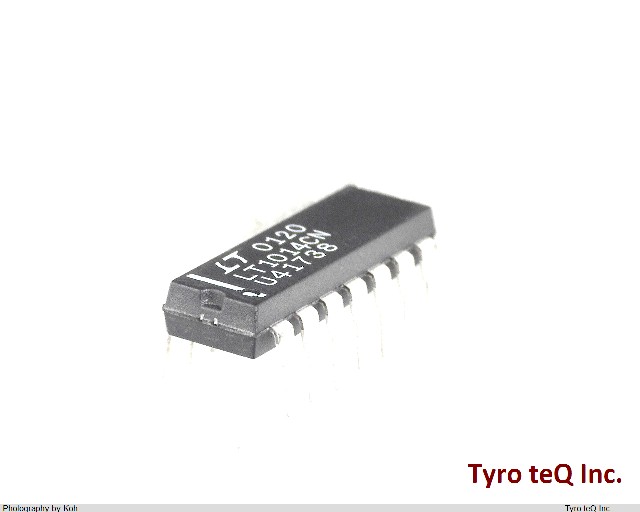

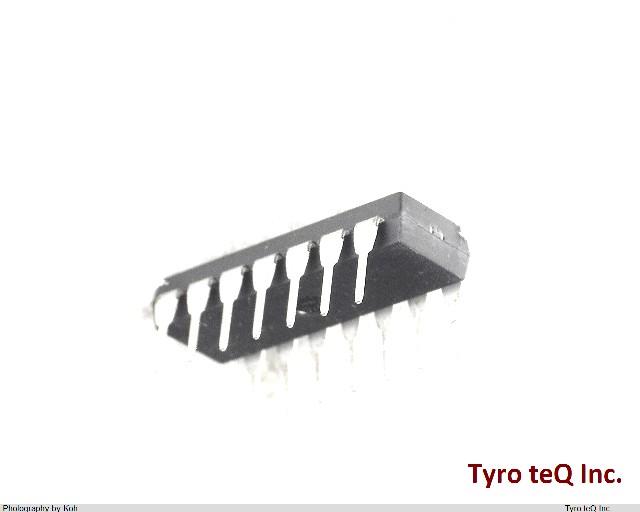

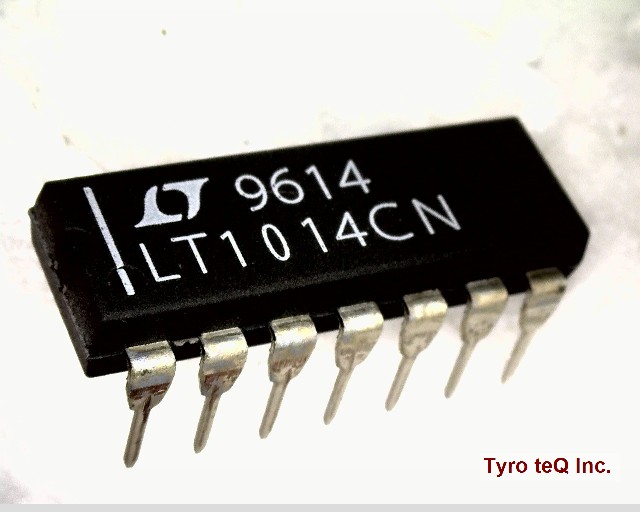

LT1014CN

Name: LT1014CN
Brand: LINEAR TECH
SKU: 220025533-0000-0000-0000

LT1014CN - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1014CN の詳細情報

型番	LT1014CN
メーカー	LINEAR TECH
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	-0.038 uA
Average Bias Current-Max (IIB) (uA)	0.038
Bias Current-Max (IIB) @25C	0.03 uA
Common-mode Reject Ratio-Min	97 dB
Common-mode Reject Ratio-Nom	113 dB
Common-mode Reject Ratio-Nom (dB)	113
DLA Qualification	Not Qualified
Frequency Compensation	YES
Input Offset Current-Max (IIO)	0.002 uA
Input Offset Voltage-Max	400 uV
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.05 mm
Low-Offset	NO
Micropower	YES
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-22 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	4
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	260
Power Supplies	5/+-15 V
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Slew Rate-Min	0.2 V/us
Slew Rate-Nom	0.4 V/us
Sub Category	Operational Amplifier
Supply Current-Max	2.2 mA
Supply Voltage Limit-Max	22 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Voltage Gain-Min	500000
Width	7.62 mm
