LT1013DS8 データシート

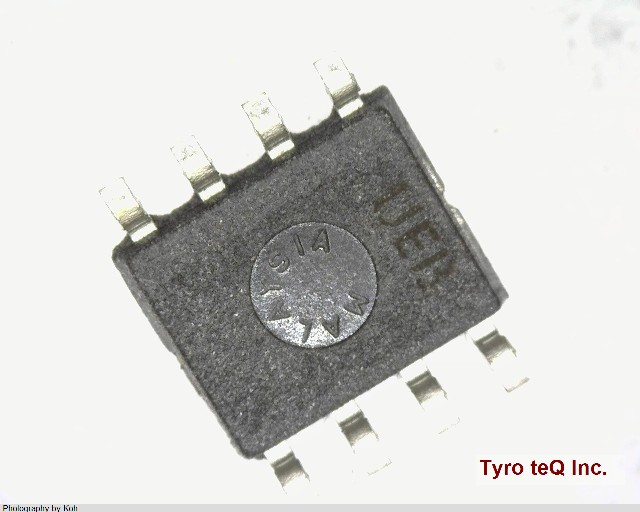

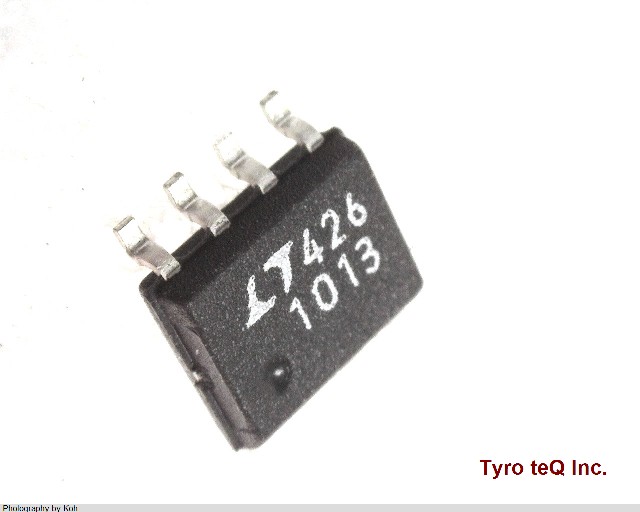

Name: LT1013DS8
Brand: LINEAR TECH
SKU: 220000039-0000-0000-0000

LT1013DS8 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1013DS8 の詳細情報

型番	LT1013DS8
メーカー	LINEAR TECH
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.038 uA
Average Bias Current-Max (IIB) (uA)	0.038
Bias Current-Max (IIB) @25C	0.05 uA
Common-mode Reject Ratio-Min	97 dB
Common-mode Reject Ratio-Min (dB)	97
Common-mode Reject Ratio-Nom	113 dB
Common-mode Reject Ratio-Nom (dB)	113
Frequency Compensation	YES
Input Offset Voltage-Max	400 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Low-Bias	NO
Low-Offset	NO
Micropower	YES
Moisture Sensitivity Level	1
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	235
Power	NO
Power Supplies	5/+-15 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Slew Rate-Min	0.2 V/us
Sub Category	Operational Amplifier
Supply Current-Max	1.2 mA
Supply Voltage Limit-Max	11 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Voltage Gain-Min	500000
Wideband	NO
Width	3.895 mm
