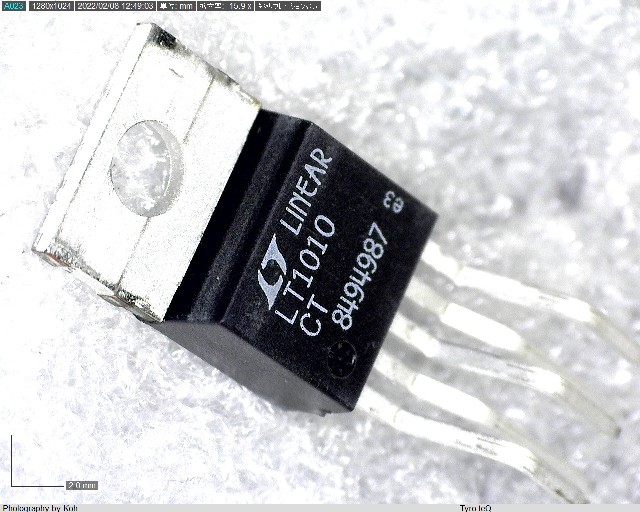

LT1010CT データシート

Name: LT1010CT
Brand: LINEAR TECH
SKU: 220025510-0000-0000-0000

LT1010CT - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1010CT の詳細情報

型番	LT1010CT
メーカー	LINEAR TECH
データシート
Amplifier Type	BUFFER
Average Bias Current-Max (IIB)	800 uA
Average Bias Current-Max (IIB) (uA)	800
Bandwidth (3dB)-Nom	20 MHz
Bias Current-Max (IIB) @25C	500 uA
Bias Current-Max (IIB) @25C (uA)	500
DLA Qualification	Not Qualified
Input Offset Voltage-Max	100000 uV
J-STD-609 Code	e3
JESD-30 Code	R-PZFM-T5
JESD-609 Code	e0
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-22 V
Neg Supply Voltage Limit-Max (V)	-22
Neg Supply Voltage-Nom (Vsup)	-15 V
Negative Supply Voltage-Nom (V)	-10
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	125 Cel
Operating Temperature-Max (Cel)	100
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	ZIP
Package Equivalence Code	ZIP5,.15,.2,67TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	+-15 V
Qualification Status	Not Qualified
Slew Rate-Min	75 V/us
Slew Rate-Min (V/us)	75
Sub Category	Buffer Amplifier
Supply Current-Max	10 mA
Supply Current-Max (mA)	10
Supply Voltage Limit-Max	22 V
Supply Voltage Limit-Max (V)	22
Supply Voltage-Nom (V)	10
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.7 mm
Terminal Position	ZIG-ZAG
Time@Peak Reflow Temperature-Max (s)	30
