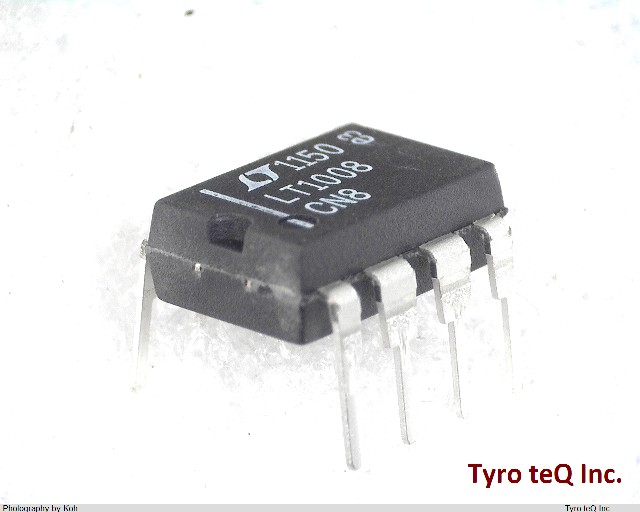

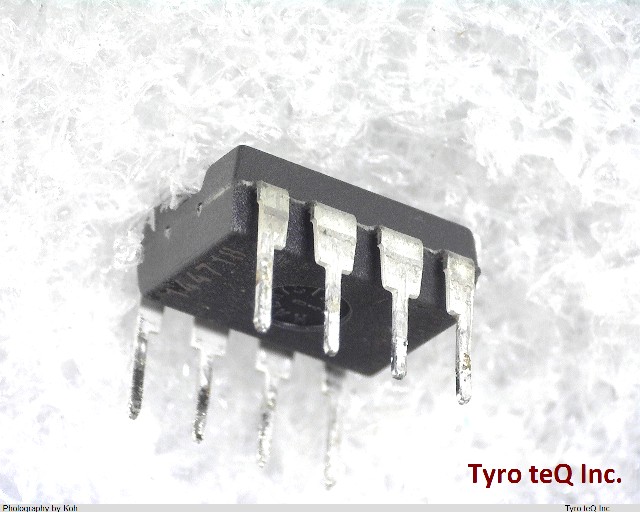

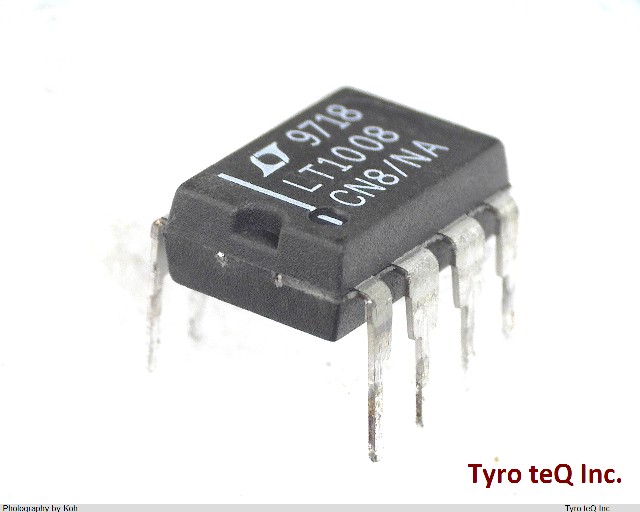

LT1008CN8 データシート

Name: LT1008CN8
Brand: LINEAR TECH
SKU: 220025503-0000-0000-0000

LT1008CN8 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1008CN8 の詳細情報

型番	LT1008CN8
メーカー	LINEAR TECH
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.00025 uA
Bias Current-Max (IIB) @25C	0.00015 uA
Common-mode Reject Ratio-Min	110 dB
Common-mode Reject Ratio-Nom	130 dB
Frequency Compensation	NO
Input Offset Current-Max (IIO)	0.00025 uA
Input Offset Voltage-Max	250 uV
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	10.16 mm
Low-Bias	YES
Low-Offset	YES
Micropower	YES
Neg Supply Voltage Limit-Max	-20 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power	YES
Power Supplies	+-2/+-20/4/40 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	3.937 mm
Slew Rate-Min	0.1 V/us
Slew Rate-Nom	0.2 V/us
Sub Category	Operational Amplifier
Supply Current-Max	0.8 mA
Supply Voltage Limit-Max	20 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Voltage Gain-Min	120000
Wideband	NO
Width	7.62 mm
