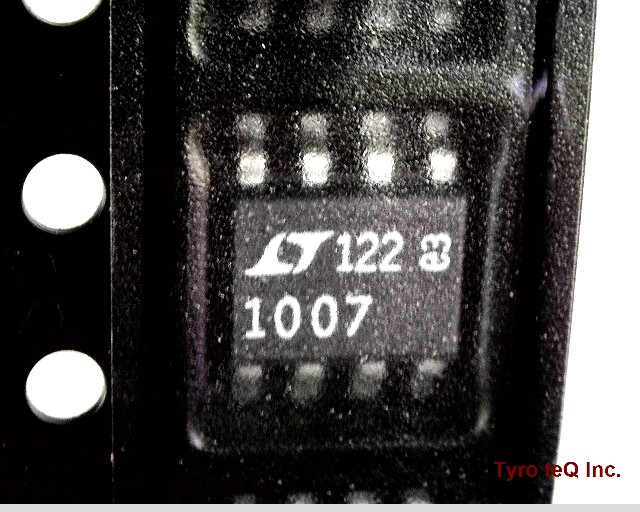

LT1007CS8#TRPBF

Name: LT1007CS8#TRPBF
Brand: LINEAR TECH
SKU: 400065234-0000-0000-0000

LT1007CS8#TRPBF - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1007CS8#TRPBF の詳細情報

型番	LT1007CS8#TRPBF
メーカー	LINEAR TECH
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.075 uA
Average Bias Current-Max (IIB) (uA)	0.075
Bias Current-Max (IIB) @25C	0.055 uA
Common-mode Reject Ratio-Min	110 dB
Common-mode Reject Ratio-Min (dB)	110
Common-mode Reject Ratio-Nom	120 dB
Common-mode Reject Ratio-Nom (dB)	120
DLA Qualification	Not Qualified
Frequency Compensation	YES
Input Offset Voltage-Max	110 uV
Input Offset Voltage-Max (uV)	110
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Length (mm)	4.9
Low-Offset	YES
Micropower	NO
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-22 V
Neg Supply Voltage Limit-Max (V)	-22
Neg Supply Voltage-Nom (Vsup)	-15 V
Negative Supply Voltage-Nom (V)	-15
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	260
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	Operational Amplifier
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Voltage Gain-Min	3500000
