LT1004MH1.2 データシート

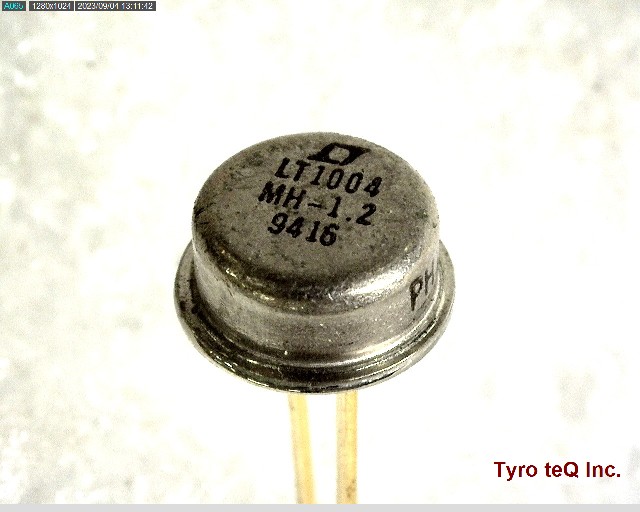

Name: LT1004MH1.2
Brand: LINEAR TECH
SKU: 220107699-0000-0000-0000

LT1004MH1.2 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1004MH1.2 の詳細情報

型番	LT1004MH1.2
メーカー	LINEAR TECH
データシート
Analog IC - Other Type	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 Code	O-MBCY-W2
JESD-609 Code	e0
Number of Functions	1
Number of Outputs	1
Number of Terminals	2
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Output Voltage-Max	1.245 V
Output Voltage-Min	1.22 V
Output Voltage-Nom	1.2 V
Package Body Material	METAL
Package Code	TO-46
Package Equivalence Code	SIP2,.1
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Qualification Status	Not Qualified
Screening Level	38535Q/M;38534H;883B
Sub Category	Voltage References
Supply Current-Max (Isup)	0.01 mA
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	MILITARY
Terminal Finish	TIN LEAD
Terminal Form	WIRE
Terminal Pitch	2.54 mm
Terminal Position	BOTTOM
Trim/Adjustable Output	NO V
Voltage Tolerance-Max	0.3 %

会社名称	Linear Technology Corporate
所在地	1630 McCarthy Blvd. Milpitas, CA 95035-7417 USA
URL	http://www.linear.com/
