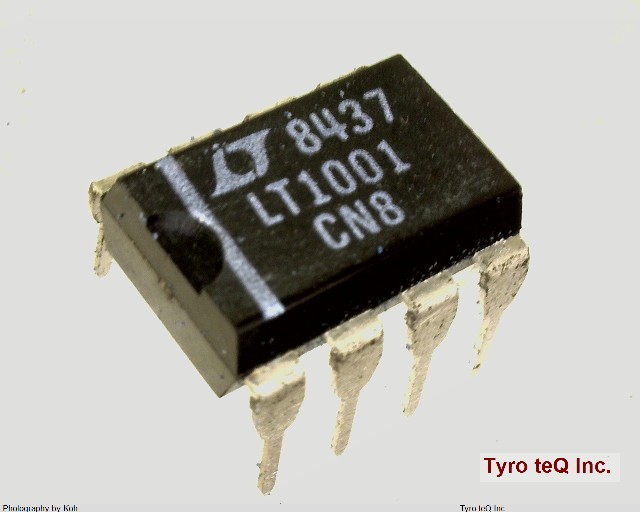

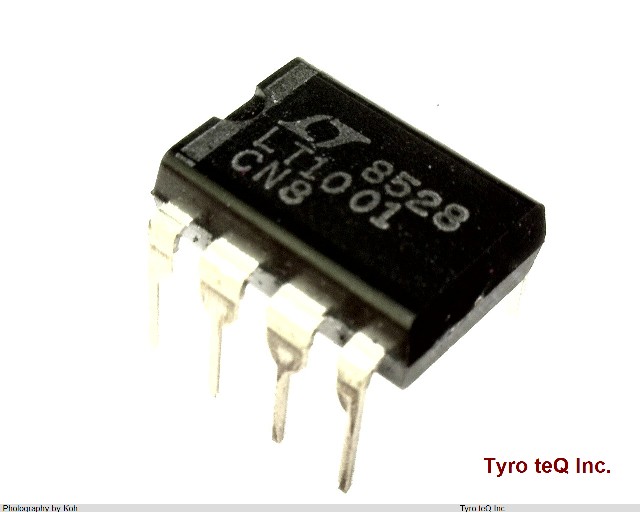

LT1001CN8 データシート

Name: LT1001CN8
Brand: LINEAR TECH
SKU: 220003864-0000-0000-0000

LT1001CN8 - LINEAR TECH の商品詳細ページです。

２営業日以内に回答いたします

LT1001CN8 の詳細情報

型番	LT1001CN8
メーカー	LINEAR TECH
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.0055 uA
Average Bias Current-Max (IIB) (uA)	0.0055
Bias Current-Max (IIB) @25C	0.004 uA
Common-mode Reject Ratio-Nom	123 dB
Common-mode Reject Ratio-Nom (dB)	123
DLA Qualification	Not Qualified
Frequency Compensation	YES
Input Offset Voltage-Max	110 uV
Input Offset Voltage-Max (uV)	110
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.375 mm
Low-Offset	YES
Neg Supply Voltage Limit-Max	-22 V
Neg Supply Voltage Limit-Max (V)	-22
Neg Supply Voltage-Nom (Vsup)	-15 V
Negative Supply Voltage-Nom (V)	-15
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	3.937 mm
Slew Rate-Min	0.1 V/us
Slew Rate-Nom	0.25 V/us
Sub Category	Operational Amplifier
Supply Current-Max	2.5 mA
Supply Voltage Limit-Max	22 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	800 kHz
Voltage Gain-Min	250000
Width	7.62 mm
