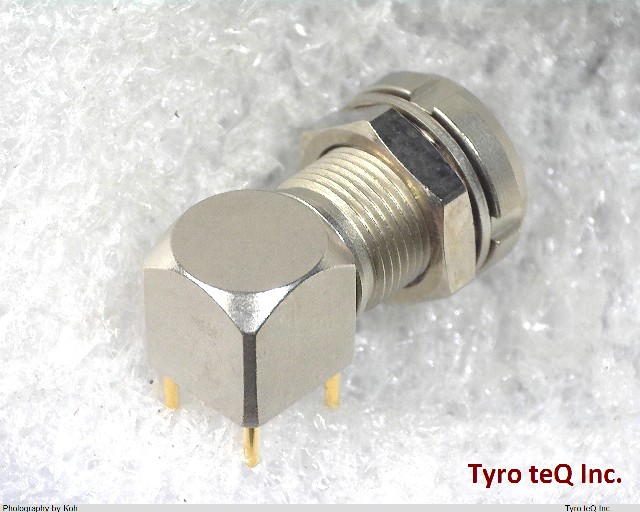

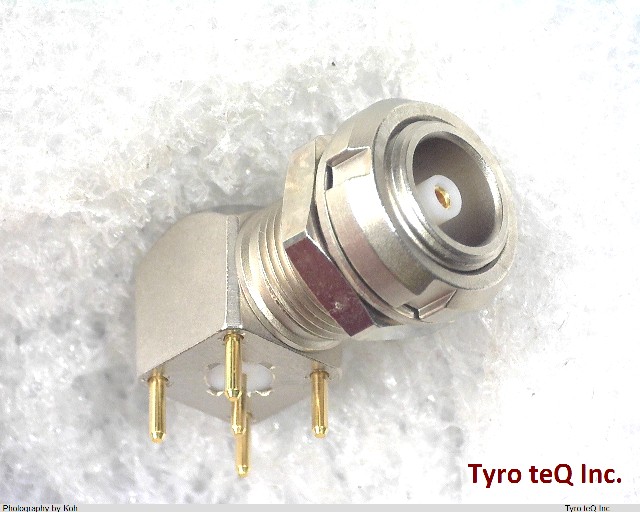

EPS.00.250.NTN Lemo

EPS.00.250.NTN - LEMO の商品詳細ページです。

1
EPS.00.250.NTN
  • EPS.00.250.NTN
  • EPS.00.250.NTN
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

EPS.00.250.NTN の詳細情報

  • 仕様・詳細
  • メーカー情報
型番EPS.00.250.NTN
メーカーLEMO
Additional Feature WTH LATCH
Body Depth 0.689 inch
Body Diameter 0.402 inch
Body/Shell Style RECEPTACLE
Characteristic Impedance 50 ohm
Connector Type CIRCULAR CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Resistance 6 mohm
Contact Style COAX
Coupling Type THREADED
DIN Conformance NO
Dielectric Withstanding Voltage 2100VAC V
Durability 1000 Cycles
Filter Feature NO
IEC Conformance NO
Insulation Resistance 1000000000000 ohm
Insulator Material POLYTETRAFLUOROETHYLENE
MIL Conformance NO
Mating Information FVS.00.250.NTA
Mounting Option 1 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number of Ports 1
Operating Frequency-Max 1.5 GHz
Operating Temperature-Max 260 Cel
Operating Temperature-Min -55 Cel
Option GENERAL PURPOSE
Panel Mount NO
Rated Current (Signal) 4 A
Reliability COMMERCIAL
Shell Finish NICKEL
Shell Material BRASS
Terminal Length 0.118 inch
Termination Type SOLDER
Total Number of Contacts 1
VSWR 1.25
