LFE2-70E-5FN900C データシート

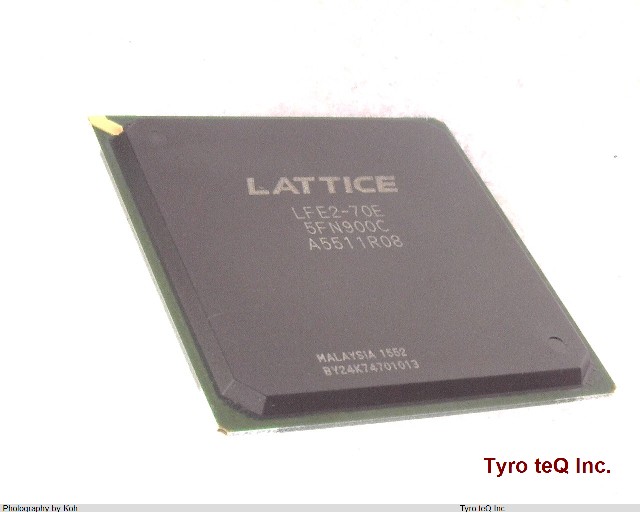

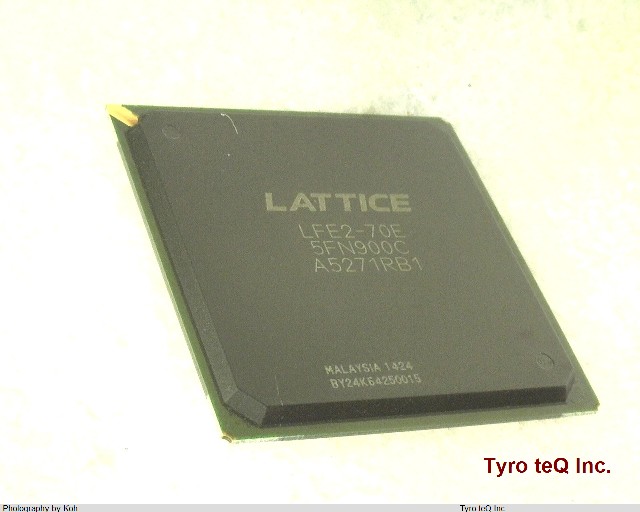

Name: LFE2-70E-5FN900C
Brand: LATTICE
SKU: 220050359-0000-0000-0000

LFE2-70E-5FN900C - LATTICE の商品詳細ページです。

２営業日以内に回答いたします

LFE2-70E-5FN900C の詳細情報

型番	LFE2-70E-5FN900C
メーカー	LATTICE
データシート
Clock Frequency-Max	311 MHz
Combinatorial Delay of a CLB-Max	0.358 ns
JESD-30 Code	S-PBGA-B900
JESD-609 Code	e1
Length	31 mm
Moisture Sensitivity Level	3
Number of CLBs	8500
Number of Inputs	583
Number of Logic Cells	70000
Number of Outputs	583
Number of Terminals	900
Operating Temperature-Max	85 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	BGA
Package Equivalence Code	BGA900,30X30,40
Package Shape	SQUARE
Package Style	GRID ARRAY Meter
Peak Reflow Temperature (Cel)	250
Power Supplies	1.2 V
Programmable Logic Type	FIELD PROGRAMMABLE GATE ARRAY
Qualification Status	Not Qualified
Seated Height-Max	2.6 mm
Sub Category	Field Programmable Gate Arrays
Supply Voltage-Max	1.26 V
Supply Voltage-Min	1.14 V
Supply Voltage-Nom	1.2 V
Surface Mount	YES
Temperature Grade	OTHER
Terminal Finish	TIN SILVER COPPER

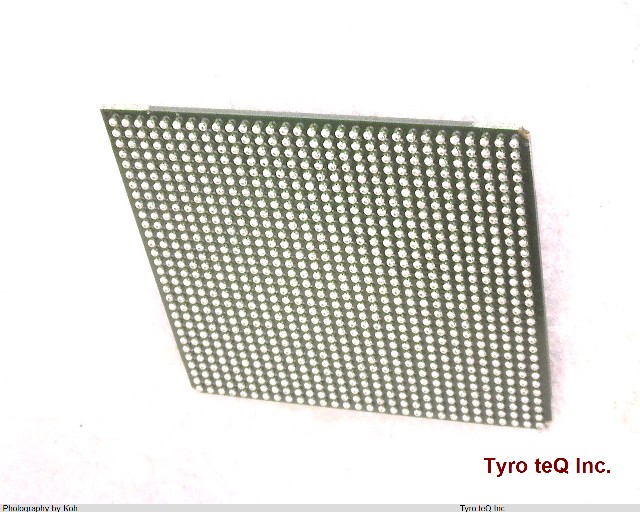

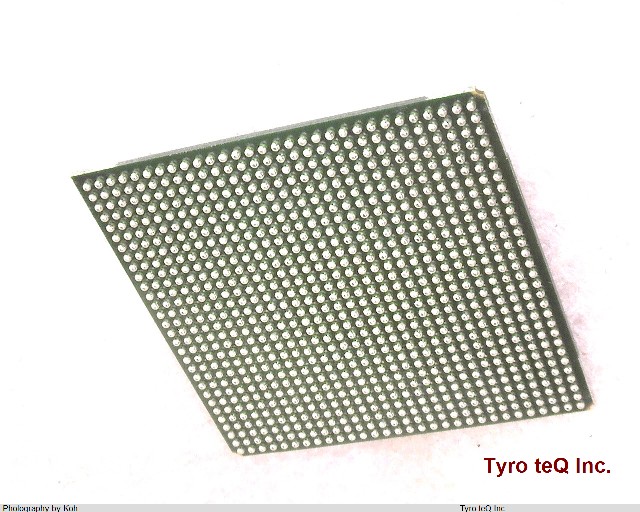

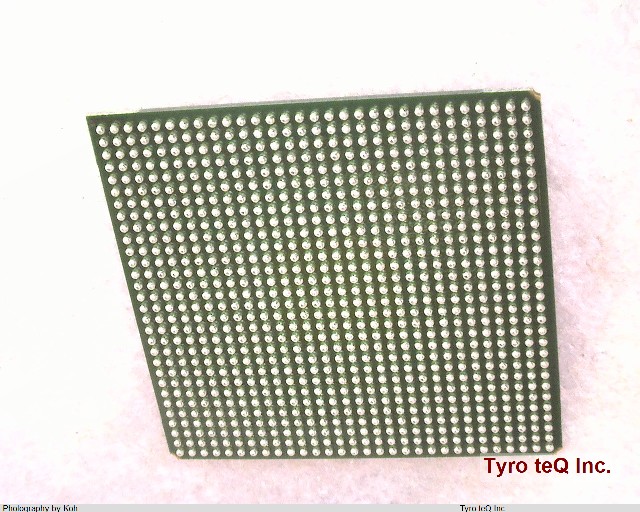

Terminal Form	BALL
Terminal Pitch	1 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	40
Width	31 mm
