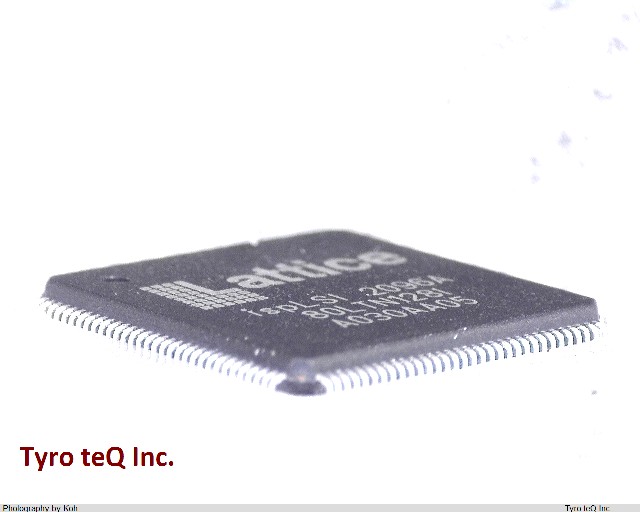

ISPLSI 2096A-80LTN128I データシート

Name: ISPLSI 2096A-80LTN128I
Brand: LATTICE
SKU: 190069335-0000-0000-0000

ISPLSI 2096A-80LTN128I - LATTICE の商品詳細ページです。

２営業日以内に回答いたします

ISPLSI 2096A-80LTN128I の詳細情報

型番	ISPLSI 2096A-80LTN128I
メーカー	LATTICE
データシート
Additional Feature	YES
Clock Frequency-Max	57 MHz
In-System Programmable	YES
JESD-30 Code	S-PQFP-G128
JESD-609 Code	e3
JTAG BST	NO
Length	14 mm
Moisture Sensitivity Level	3
Number of Dedicated Inputs	3
Number of I/O Lines	96
Number of Macro Cells	96
Number of Terminals	128
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	3 DEDICATED INPUTS, 96 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP128,.64SQ,16
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Programmable Logic Type	EE PLD
Propagation Delay	18.5 ns
Qualification Status	Not Qualified
Seated Height-Max	1.6 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.4 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	40
Width	14 mm
