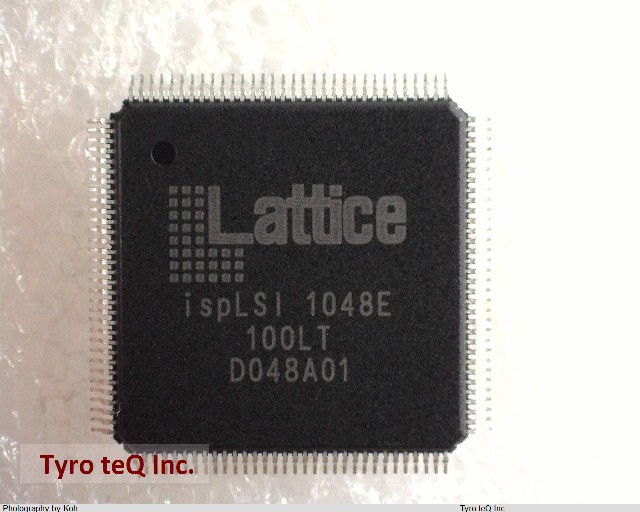

ISPLSI 1048E-100LT データシート

Name: ISPLSI 1048E-100LT
Brand: LATTICE
SKU: 190049798-0000-0000-0000

ISPLSI 1048E-100LT - LATTICE の商品詳細ページです。

２営業日以内に回答いたします

ISPLSI 1048E-100LT の詳細情報

型番	ISPLSI 1048E-100LT
メーカー	LATTICE
データシート
Additional Feature	USE ISPLSI1048EA FOR NEW DESIGNS
Clock Frequency-Max	71 MHz
In-System Programmable	YES
JESD-30 Code	S-PQFP-G128
JESD-609 Code	e0
JTAG BST	NO
Length	14 mm
Moisture Sensitivity Level	3
Number of Dedicated Inputs	8
Number of I/O Lines	96
Number of Macro Cells	192
Number of Terminals	128
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Organization	8 DEDICATED INPUTS, 96 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP128,.64SQ,16
Package Shape	SQUARE
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	5 V
Programmable Logic Type	EE PLD
Propagation Delay	12.5 ns
Qualification Status	Not Qualified
Seated Height-Max	1.6 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.4 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	14 mm
