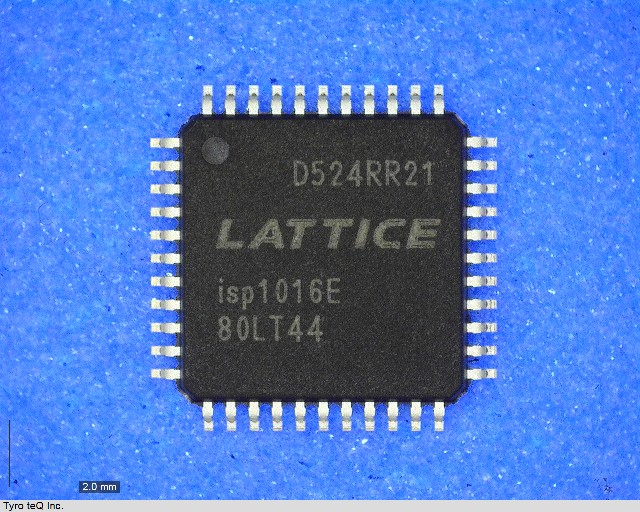

ISPLSI1016E-80LT44 データシート

Name: ISPLSI1016E-80LT44
Brand: LATTICE
SKU: 190002145-0000-0000-0000

ISPLSI1016E-80LT44 - LATTICE の商品詳細ページです。

２営業日以内に回答いたします

ISPLSI1016E-80LT44 の詳細情報

型番	ISPLSI1016E-80LT44
メーカー	LATTICE
データシート
Architecture	PLA-TYPE
Clock Frequency-Max	57 MHz
In-System Programmable	YES
JESD-30 Code	S-PQFP-G44
JESD-609 Code	e0
JTAG BST	NO
Length	10 mm
Moisture Sensitivity Level	3
Number of Dedicated Inputs	3
Number of I/O Lines	32
Number of Inputs	35
Number of Macro Cells	64
Number of Outputs	32
Number of Terminals	44
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Organization	3 DEDICATED INPUTS, 32 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	TQFP
Package Equivalence Code	TQFP44,.47SQ,32
Package Shape	SQUARE
Package Style	FLATPACK, THIN PROFILE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	5 V
Programmable Logic Type	EE PLD
Propagation Delay	18.5 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	0.8 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	10 mm
