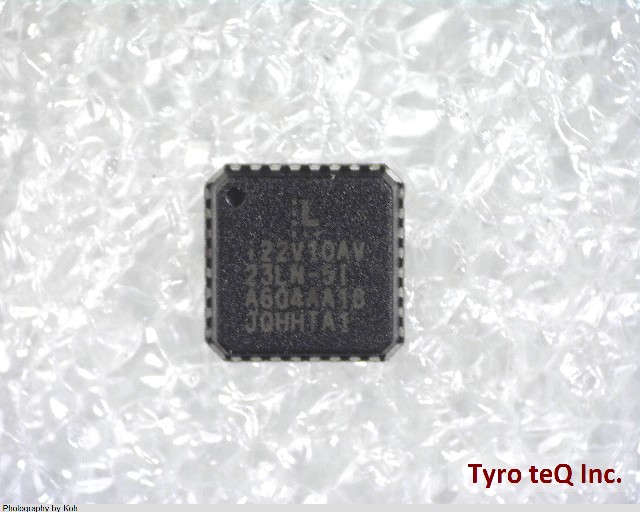

ISPGAL22V10AV-23LN データシート

Name: ISPGAL22V10AV-23LN
Brand: LATTICE
SKU: 190049718-0000-0000-0000

ISPGAL22V10AV-23LN - LATTICE の商品詳細ページです。

２営業日以内に回答いたします

ISPGAL22V10AV-23LN の詳細情報

型番	ISPGAL22V10AV-23LN
メーカー	LATTICE
データシート
Architecture	PAL-TYPE
Clock Frequency-Max	303 MHz
JESD-30 Code	S-XQCC-N32
JESD-609 Code	e0
Length	5 mm
Moisture Sensitivity Level	1
Number of Dedicated Inputs	11
Number of I/O Lines	10
Number of Inputs	22
Number of Outputs	10
Number of Product Terms	132
Number of Terminals	32
Organization	11 DEDICATED INPUTS, 10 I/O
Output Function	MACROCELL
Package Body Material	UNSPECIFIED
Package Code	HVQCCN
Package Equivalence Code	LCC32(UNSPEC)
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	3.3 V
Programmable Logic Type	EE PLD
Propagation Delay	2.3 ns
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	5 mm
