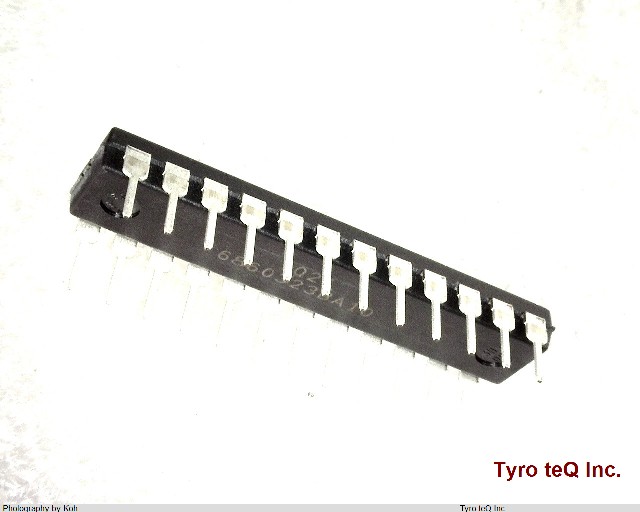

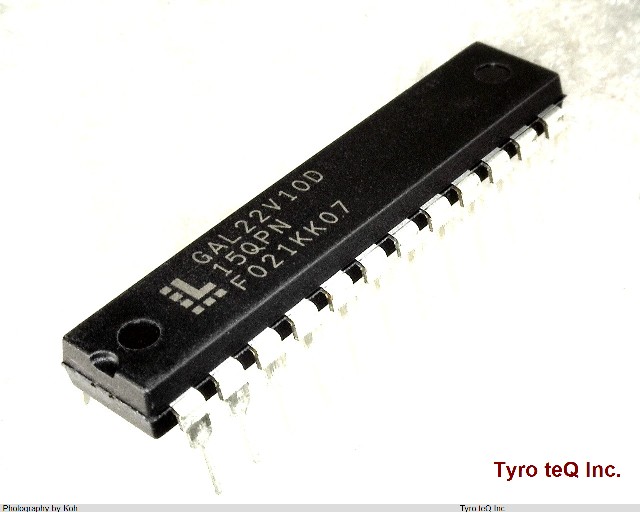

GAL22V10D-15QPN

Name: GAL22V10D-15QPN
Brand: LATTICE
SKU: 170021870-0000-0000-0000

GAL22V10D-15QPN - LATTICE の商品詳細ページです。

２営業日以内に回答いたします

GAL22V10D-15QPN の詳細情報

型番	GAL22V10D-15QPN
メーカー	LATTICE
Architecture	PAL-TYPE
Clock Frequency-Max	55.5 MHz
In-System Programmable	NO
JESD-30 Code	R-PDIP-T24
JESD-609 Code	e3
JTAG BST	NO
Length	31.75 mm
Moisture Sensitivity Level	1
Number of Dedicated Inputs	11
Number of I/O Lines	10
Number of Inputs	22
Number of Macro Cells	10
Number of Outputs	10
Number of Product Terms	132
Number of Terminals	24
Operating Temperature-Max	75 Cel
Operating Temperature-Min	0 Cel
Organization	11 DEDICATED INPUTS, 10 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP24,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Programmable Logic Type	EE PLD
Propagation Delay	15 ns
Qualification Status	Not Qualified
Seated Height-Max	5.334 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
