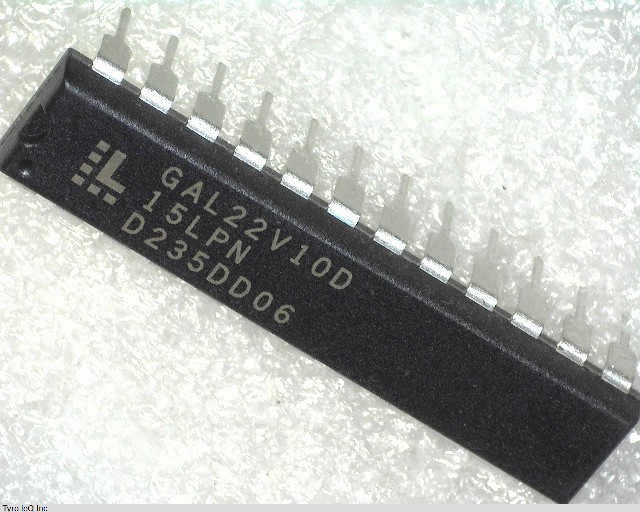

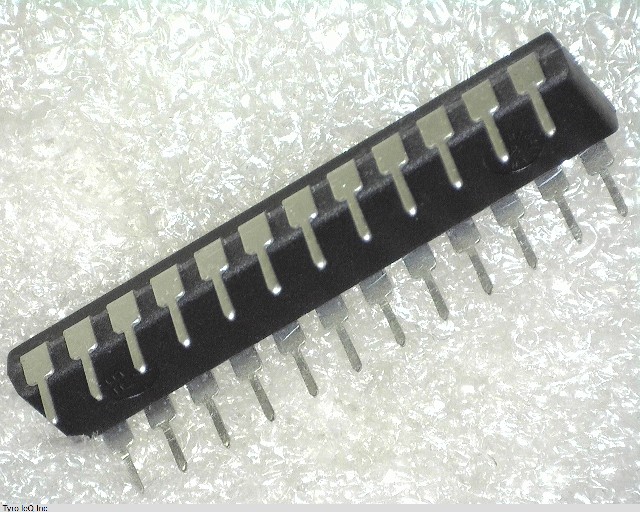

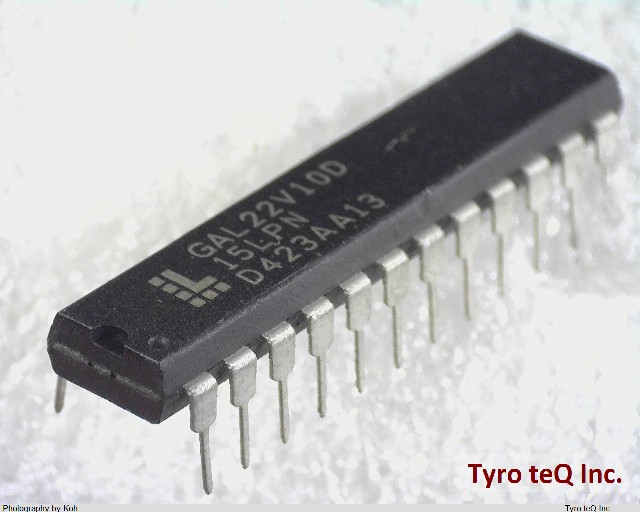

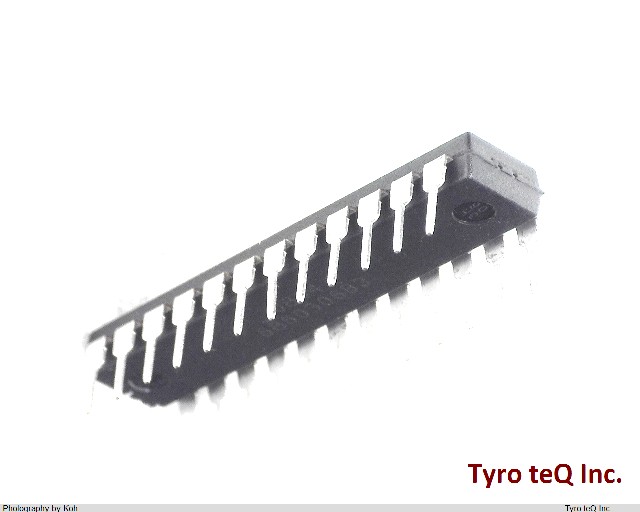

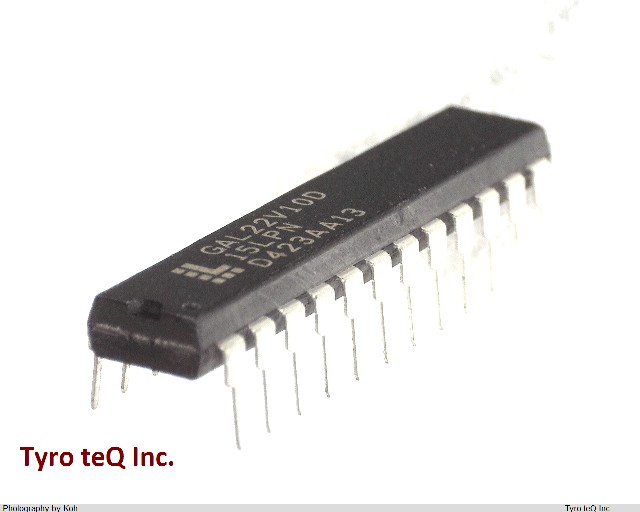

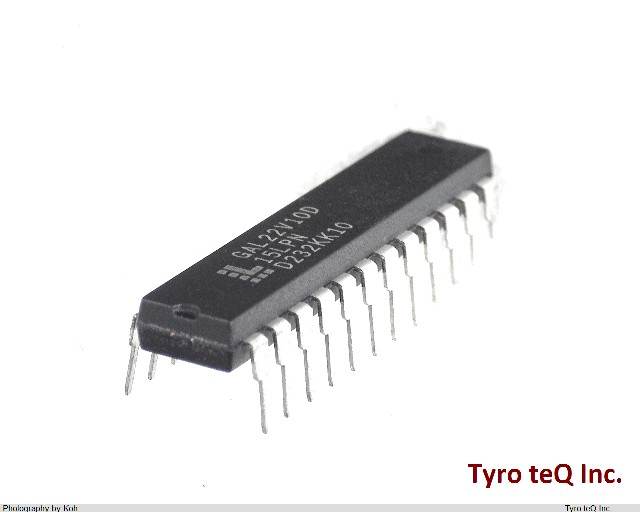

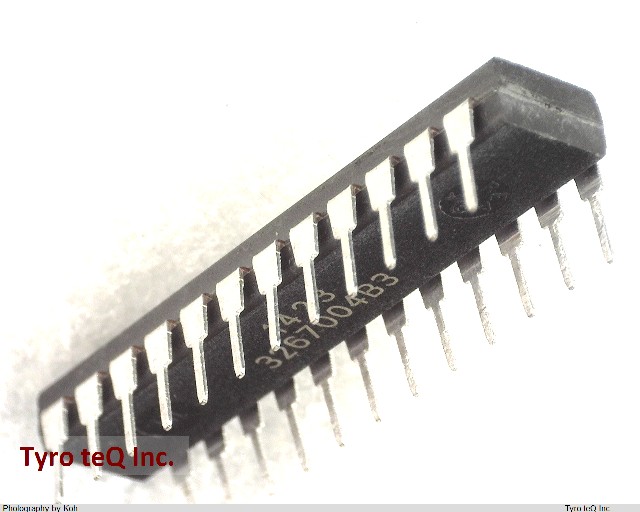

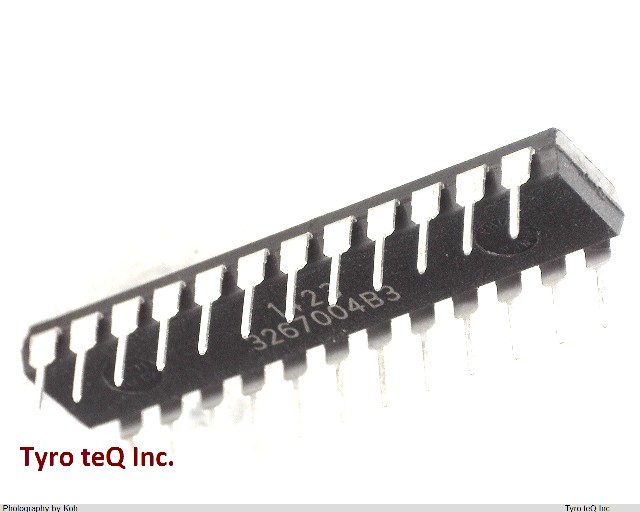

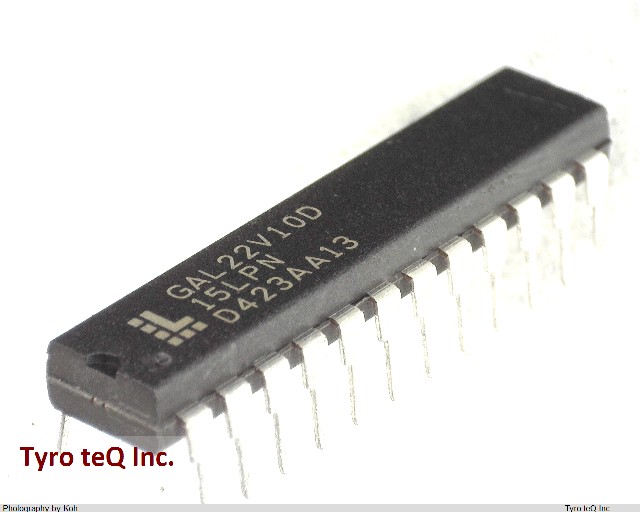

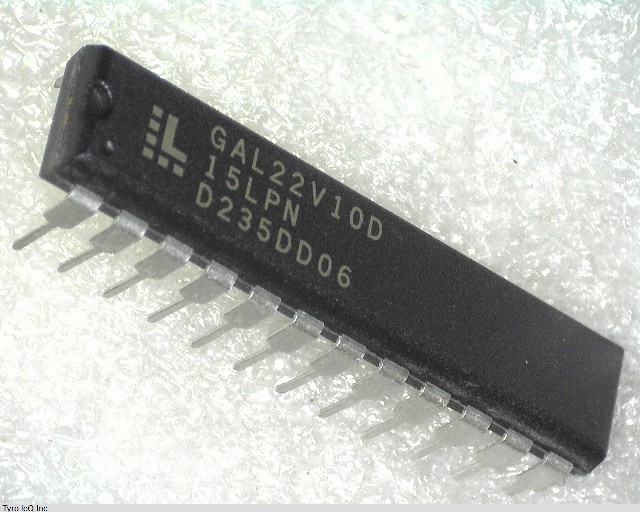

GAL22V10D-15LPN

Name: GAL22V10D-15LPN
Brand: LATTICE
SKU: 170021869-0000-0000-0000

GAL22V10D-15LPN - LATTICE の商品詳細ページです。

２営業日以内に回答いたします

GAL22V10D-15LPN の詳細情報

型番	GAL22V10D-15LPN
メーカー	LATTICE
Additional Feature	10 MACROCELLS; SHARED INPUT/CLOCK
Architecture	PAL-TYPE
Clock Frequency-Max	55.5 MHz
JESD-30 Code	R-PDIP-T24
JESD-609 Code	e3
Length	31.75 mm
Moisture Sensitivity Level	1
Number of Dedicated Inputs	11
Number of I/O Lines	10
Number of Inputs	22
Number of Outputs	10
Number of Product Terms	132
Number of Terminals	24
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-40 Cel
Organization	11 DEDICATED INPUTS, 10 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP24,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Programmable Logic Type	EE PLD
Propagation Delay	15 ns
Qualification Status	Not Qualified
Seated Height-Max	5.334 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
