GAL16V8D-15QPN Lattice

GAL16V8D-15QPN - LATTICE の商品詳細ページです。

1

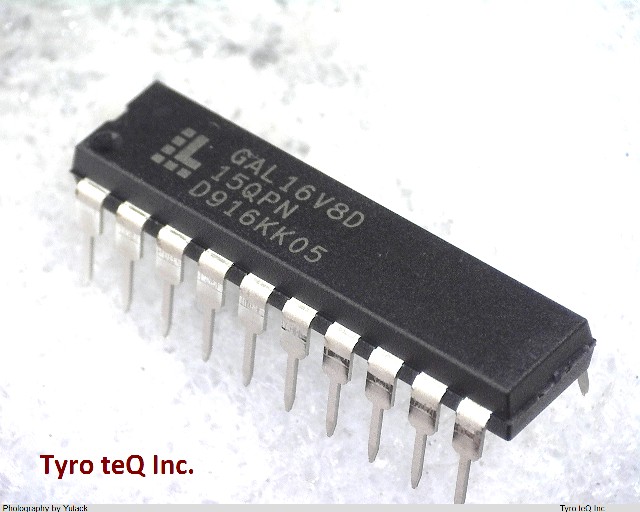

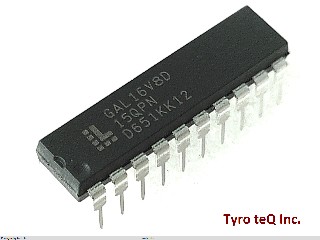

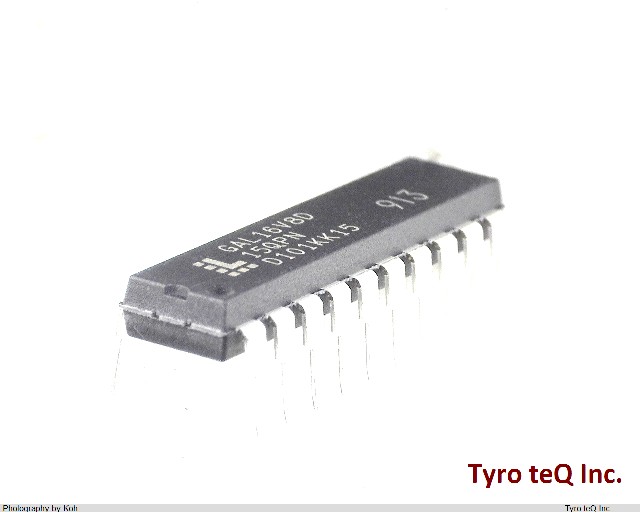

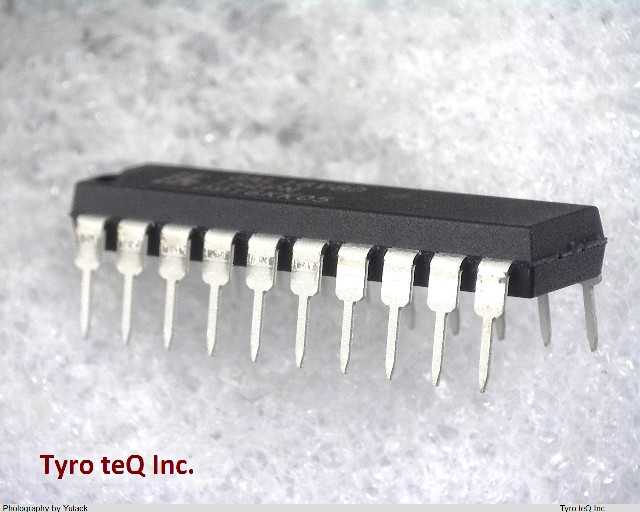

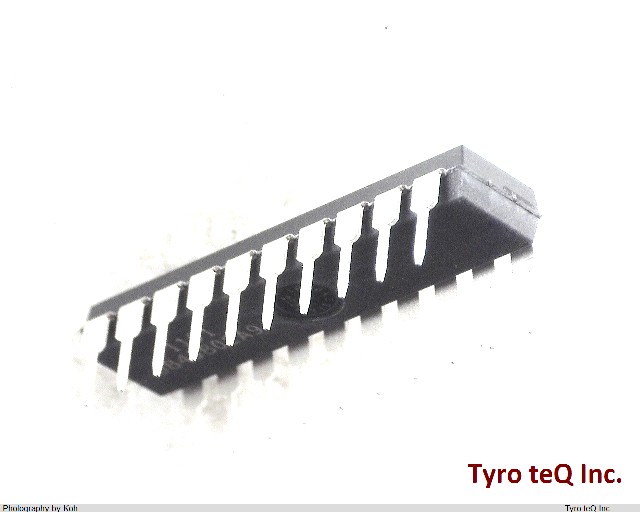

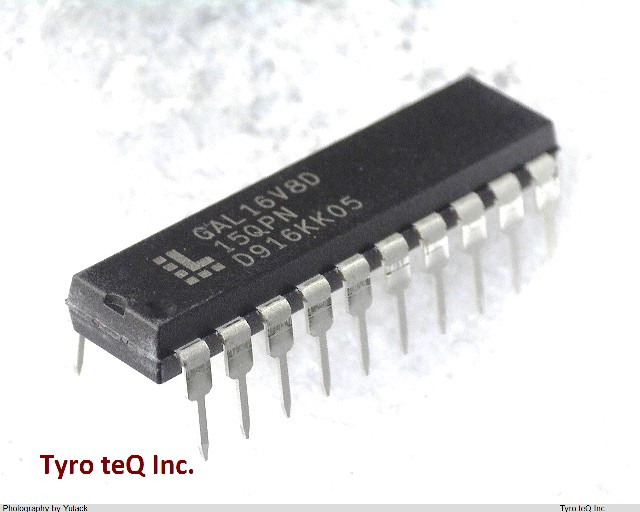

GAL16V8D-15QPN
  • GAL16V8D-15QPN
  • GAL16V8D-15QPN
  • GAL16V8D-15QPN
  • GAL16V8D-15QPN
  • GAL16V8D-15QPN
  • GAL16V8D-15QPN
  • GAL16V8D-15QPN
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

GAL16V8D-15QPN の詳細情報

  • 仕様・詳細
  • メーカー情報
型番GAL16V8D-15QPN
メーカーLATTICE
Architecture PAL-TYPE
Clock Frequency-Max 45.5 MHz
JESD-30 Code R-PDIP-T20
JESD-609 Code e3
Length 26.162 mm
Number of Dedicated Inputs 8
Number of I/O Lines 8
Number of Inputs 18
Number of Outputs 8
Number of Product Terms 64
Number of Terminals 20
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Organization 8 DEDICATED INPUTS, 8 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP20,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Peak Reflow Temperature (Cel) 260
Power Supplies 5 V
Programmable Logic Type EE PLD
Propagation Delay 15 ns
Qualification Status Not Qualified
Seated Height-Max 5.334 mm
Sub Category Programmable Logic Devices
Supply Voltage-Max 5.25 V
Supply Voltage-Min 4.75 V
Supply Voltage-Nom 5 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish MATTE TIN
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
会社名称Lattice Semiconductor Corporation
設立1983
所在地7th Floor, 111 SW 5th Avenue, Portland OR 97204
URLhttp://www.latticesemi.com/
