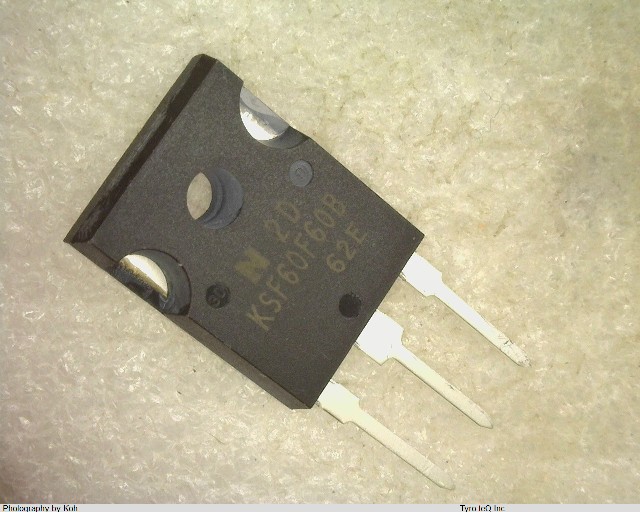

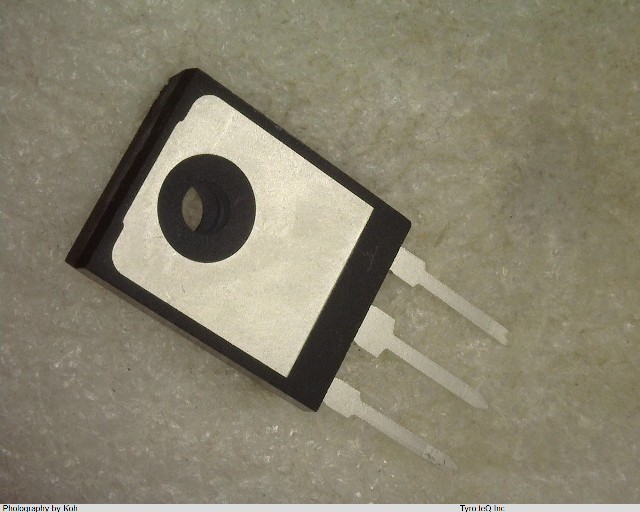

KSF60F60B

Name: KSF60F60B
Brand: KYOCERA
SKU: 210099301-0000-0000-0000

KSF60F60B - KYOCERA の商品詳細ページです。

２営業日以内に回答いたします

KSF60F60B の詳細情報

型番	KSF60F60B
メーカー	KYOCERA
Additional Feature	FREE WHEELING DIODE, LOW LEAKAGE CURRENT
Application	FAST SOFT RECOVERY
Case Connection	CATHODE
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	RECTIFIER DIODE
Forward Voltage-Max (VF)	1.7 V
JEDEC-95 Code	TO-247
JESD-30 Code	R-PSFM-T3
Non-rep Pk Forward Current-Max	600 A
Number of Elements	1
Number of Phases	1
Number of Terminals	3
Operating Temperature-Max	175 Cel
Operating Temperature-Min	-55 Cel
Output Current-Max	60 A
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Rep Pk Reverse Voltage-Max	600 V
Reverse Current-Max	50 uA
Reverse Recovery Time-Max	0.085 us
Surface Mount	NO
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
